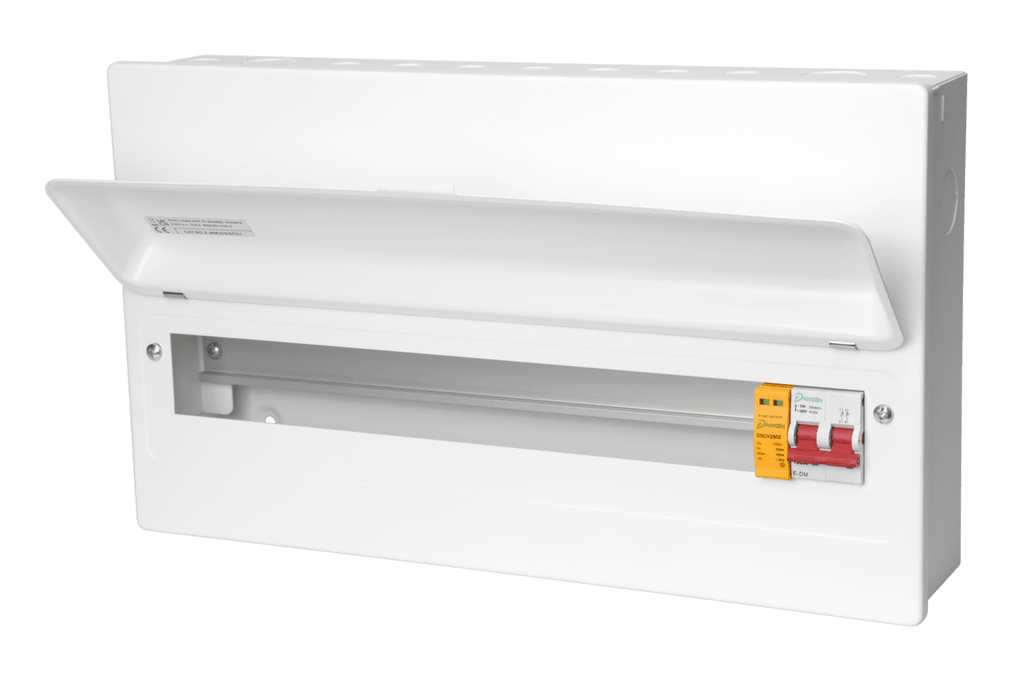

Danson E-MM224-SPD1 22 modules (19 Usable Ways) Consumer Unit 100A Switch Disconnector & SPD
- 22 Module Consumer Unit 100A Switch disconnector
- SPD Type II 20-40kA, 1P+N 275V AC with Remote Indication Contact,
- Accepts further 18 modules (1 Integral neutral bar)
- 19 usable ways
- Dimensions (HxWxD): 454 x 264 x 115.3mm
- Degree of protection to BS EN 60529 to IP2XC. Precautions must be taken to maintain the IP rating, e.g. use of cable glands and knockouts.
- BS EN 61439-3
- Cable entry points are located on top, bottom, side and rear surfaces
Specification
Depth |
115.3mm |
Height |
454mm |
Number of incoming ways |
22 |
Product type |
Consumer Units |
Regulatory |
BS EN 61439-3 |
Width |
264mm |
Downloads
Download product data sheets
