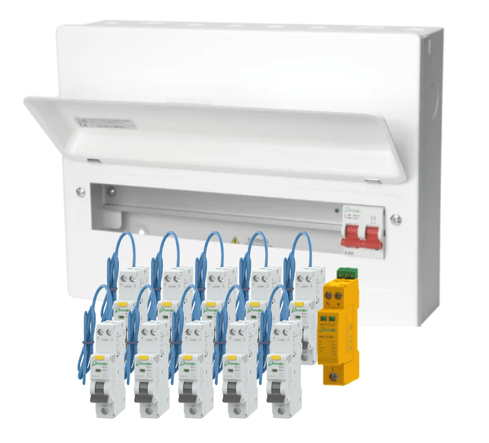

Danson 19 Way Consumer Unit w/ 100A MS, 1 Mod SPD and 10 RCBOs
CHOOSE YOUR RCBOs IN THE BOX ABOVE
Bundle Contains
- Danson 19-way consumer unit with a 100A main switch
- Surge protection device
- 10 RCBOs of your choice (Choose RCBOs using the text box above)
Technical Details
- E-MM224-SPD1 consumer unit featuring 100A main switch, 1- module SPD and 10 RCBOs of your choice
- SPD Type II 20-40kA, 1P+N 275V AC with Remote Indication Contact,
- Accepts further 18 modules (1 Integral neutral bar)
- 19 usable ways
- Dimensions (HxWxD): 454 x 264 x 115.3mm
- Degree of protection to BS EN 60529 to IP2XC. Precautions must be taken to maintain the IP rating, e.g. use of cable glands and knockouts.
- BS EN 61439-3
- Cable entry points are located on top, bottom, side and rear surfaces
Specification
Amps ii |
100 |
Depth |
115.3mm |
Height |
454mm |
Number of incoming ways |
22 |
Product type |
Consumer Units |
Regulatory |
BS EN 61439-3 |
Width |
264mm |
Downloads
Download product data sheets
