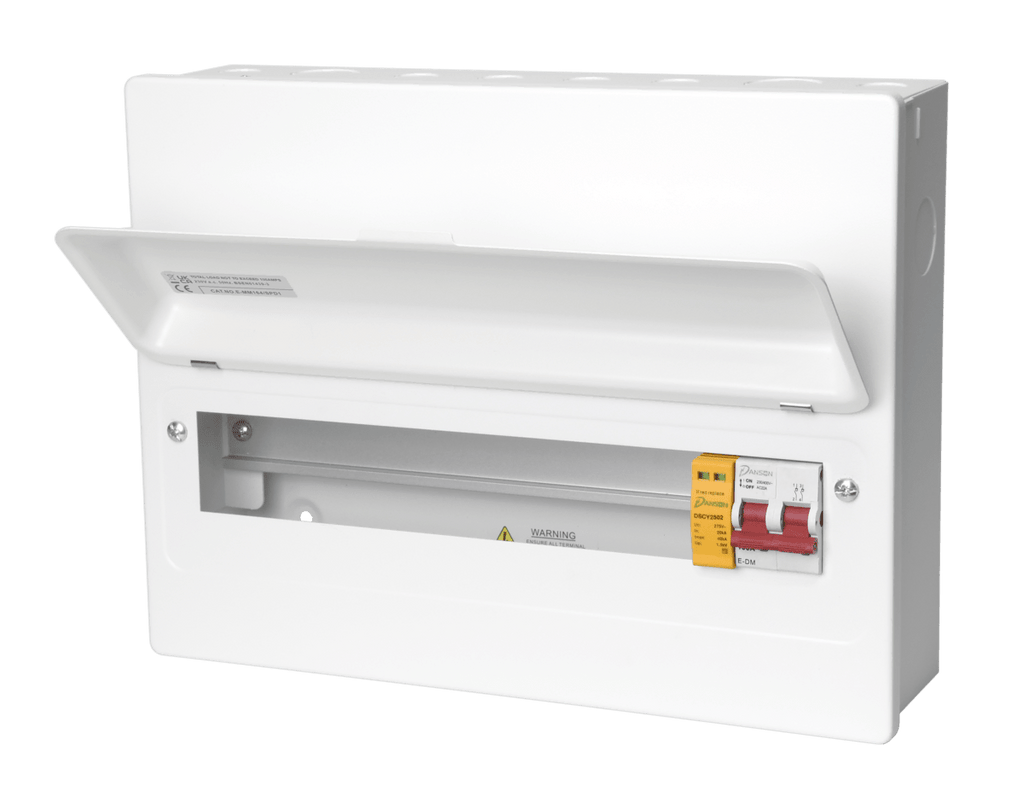

Danson E-MM164-SPD1 16 module (13 Usable Ways) Consumer Unit 100A Switch Disconnector & SPD
- 16 Module Consumer Unit with 100A switch disconnector
- SPD Type II 20-40kA, 1P+N 275V AC with Remote Indication Contact,
- 13 usable ways (1 Integral neutral bar)
- Dimensions (HxWxD): 345 x 264 x 115.3mm
- Degree of protection to BS EN 60529 to IP2XC. Precautions must be taken to maintain the IP rating, e.g. use of cable glands and knockouts. BS EN 61439-3
- Cable entry points are located on top, bottom, side and rear surfaces
Specification
Consumer unit type |
Main Switch |
Depth |
115.3mm |
Enclosure material |
Metal |
Height |
345 |
Internal external |
Internal |
Number of incoming ways |
16 |
Populated |
Partially Populated |
Product type |
Consumer Units |
Width |
264 |
Downloads
Download product data sheets
