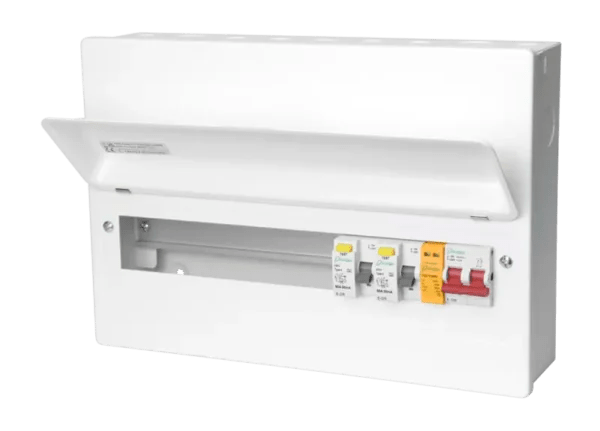

Danson E-MH18433-SPD1 (E-MH6680/SPD1) 11 Way Cons. Unit with 100A Swi. Disconnector & 2 x 80A 30mA Type A RCDs & SPD + 10 MCBs
- 10 MCBs included in price
- 18-module consumer unit with 100A switch disconnector (11 Usable ways)
- SPD Type II 20-40kA, 1P+N 275V AC with Remote Indication Contact
- 11 usable ways
- Dimensions (HxWxD): 380 x 264 x 115.3mm
- Degree of protection to BS EN 60529 to IP2XC. Precautions must be taken to maintain the IP rating, e.g. use of cable glands and knockouts. BS EN 61439-3
- Cable entry points are located on top, bottom, side and rear surfaces
Product code changed to E-MH18433/SPD1/10MCB
Specification
Depth |
115.3mm |
Height |
380 |
Number of incoming ways |
18 |
Product type |
Consumer Units |
Width |
264 |
Downloads
Download product data sheets
