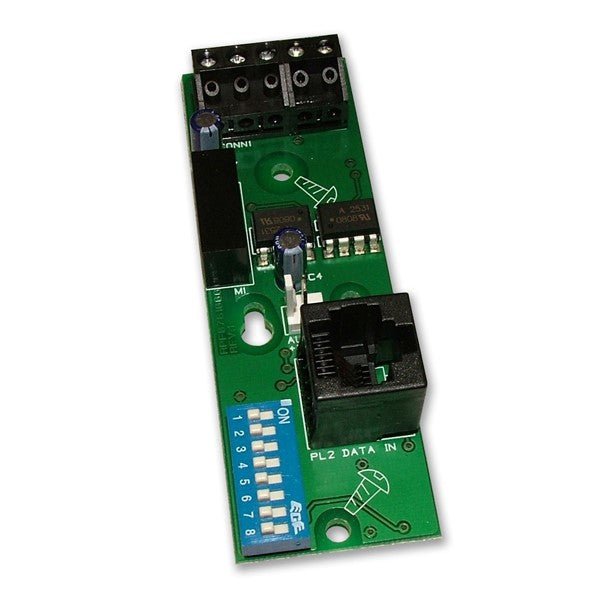

C-TEC CFP761 CFP-XFP Network Driver Card
Product Description
An optional system expansion device for use with CFP Standard, CFP AlarmSense (2-8 Zone) and XFP 1 Loop 16 Zone fire panels.
Allows the connection of up to eight CFP760 Repeaters (one CFP761 required per Main, all CFP760 repeaters include a CFP761 as standard) or eight XFP Repeaters / eight XFP Main panels (any mix).
One CFP761 required per networked Main XFP Single Loop 16 Zone fire panel (note that XFP510-16 and XFP510-32 repeaters include a network driver card as standard).
The CFP761 is NOT compatible with XFP 1/2 Loop 32 Zone fire panels which require an AFP711 card for networking.
Communicates over screened two-wire fire resistant cable.
Total repeater network cable length should not exceed 1KM.
Product Details
| Compatibility | CFP Standard Conventional and CFP AlarmSense 2-8 Zone Fire Panels. |
| Power requirements | Aux 24V from host fire panel. |
| Quiescent current | 2.8mA @ 30V DC. |
| Product dimensions (mm) | 30 W x 90 H x D 20mm |
| Weight | 24g. |
Specification
Product type |
Fire Alarm |
