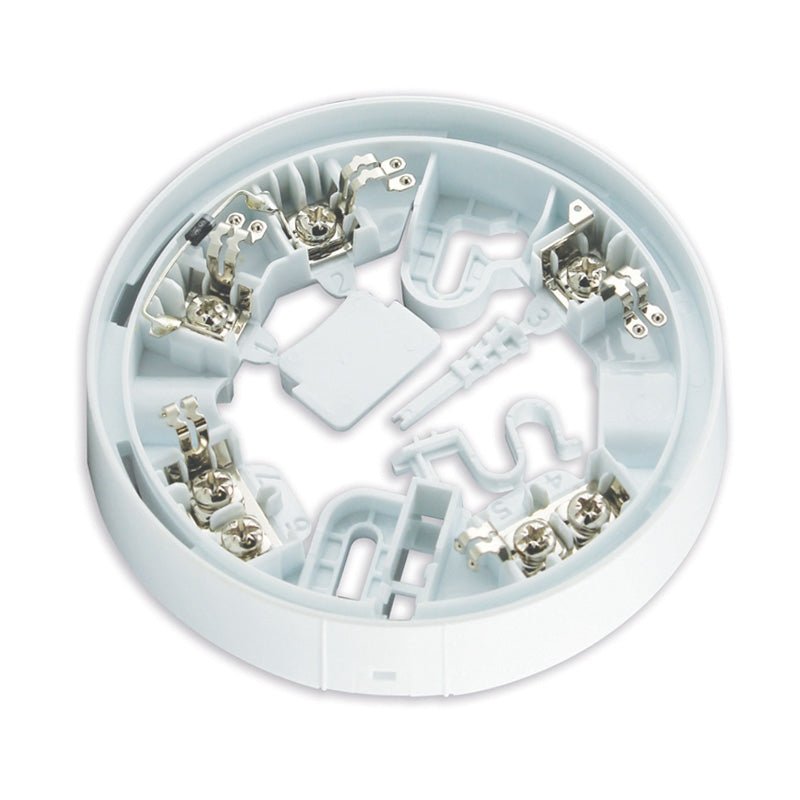

C-Tec C4408 C4 ActiV Non-Diode Base
Product Description
Non-diode base for C-TEC’s entire range of ActiV fire detectors.
Product Details
| Approvals/certifications | Certified to the relevant parts of EN54 by Intertek as part of our ActiV fire detector certifications. |
| Supply wiring | 2-wire monitored, polarity sensitive. |
| Connections | (1) +V In; (2) +V Out; (3) Remote LED +V; (4) 0V; (5) 0V; (6) Screen; (7) Screen. Terminals can accept up to 2.5mm fire rated cable. |
| Product dimensions (mm) | 102.2mm diameter x 20.5mm deep. |
| Construction & finish | White polycarbonate rated to UL94 V-2 with bright tin plated steel terminals fitted with nickel plated steel screws/washers. |
| IP Rating | IP42. |
| Weight | 55g. |
| Notes | THIS DEVICE DOES NOT INCLUDE A SCHOTTKY DIODE AND MUST NOT BE USED ON SYSTEMS REQUIRING HEAD OUT MONITORING. |
Specification
Internal external |
Internal |
Product type |
Fire Alarm |
