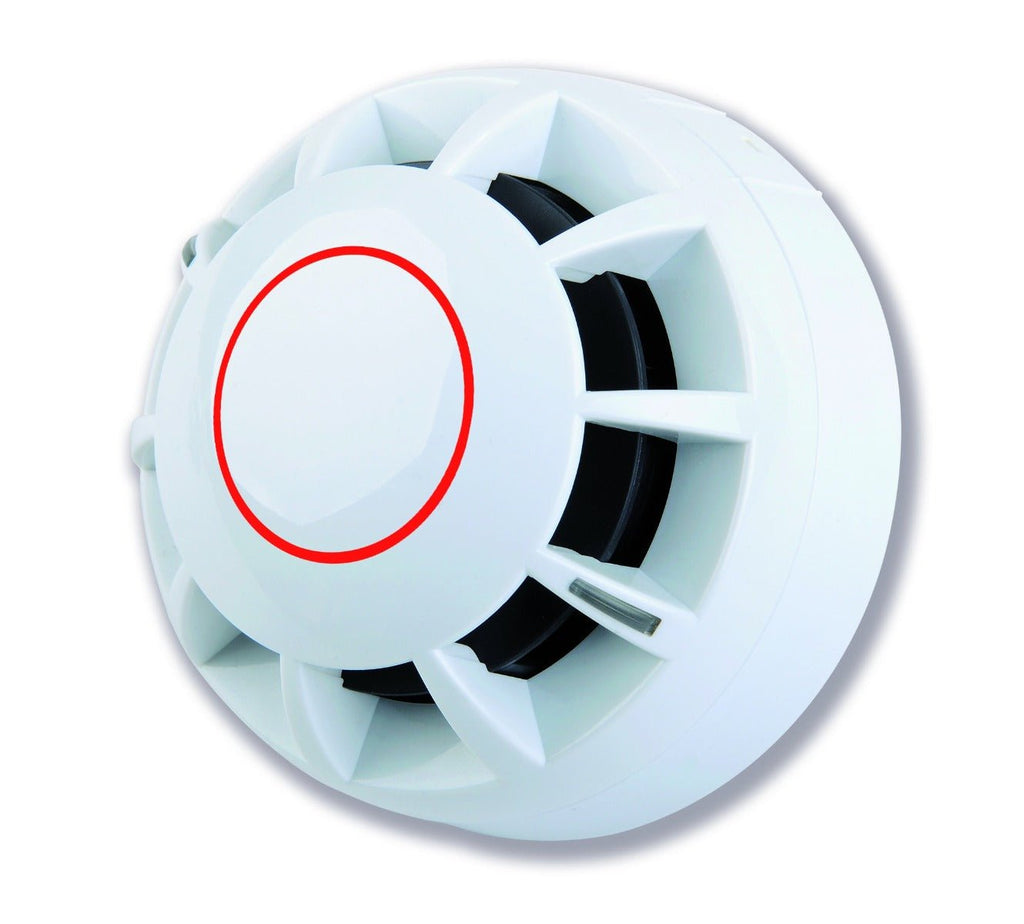

C-Tec C4403A1R C4 ActiV Rate of Rise Heat Detector
Product Description
A high-quality type A1R static/rate of rise heat detector offering outstanding detection performance.
Product Details
| Approvals/certifications | Certified to EN54-5 by Intertek. |
| Application/operation | Generates an alarm condition when it detects a sudden rise in temperature or if it detects a static temperature of between 54ºC & 65ºC. |
| Application temperature | 25°C typical, 50°C max. |
| Static response temperature | 54°C min, 65°C max. |
| Supply wiring | 2-wire monitored, polarity sensitive. |
| Supply/operating voltage | 9 to 33V DC. |
| Quiescent current | 30µA @ 24 VDC. |
| Alarm voltage | 6-33V DC. |
| Alarm current | 19mA @ 12-33V DC; 11mA @ 9V DC; 2.5mA@ 6V DC. |
| Alarm reset voltage | Less than 1V DC (+0.5 seconds alarm reset time). |
| Expansion connections | Remote LED output available via ActiV base. Current source to the negative line, short-circuit protected. Max voltage 2.7V DC. |
| Product dimensions (mm) | 102.2mm diameter x 37mm deep (detector in base); 102.2mm diameter x 57.5mm deep. |
| Construction & finish | White polycarbonate casing rated to UL94 V-2 with nylon parts. |
| IP Rating | IP42. |
| Weight | 99g. |
Specification
Internal external |
Internal |
Product type |
Fire Alarm |
