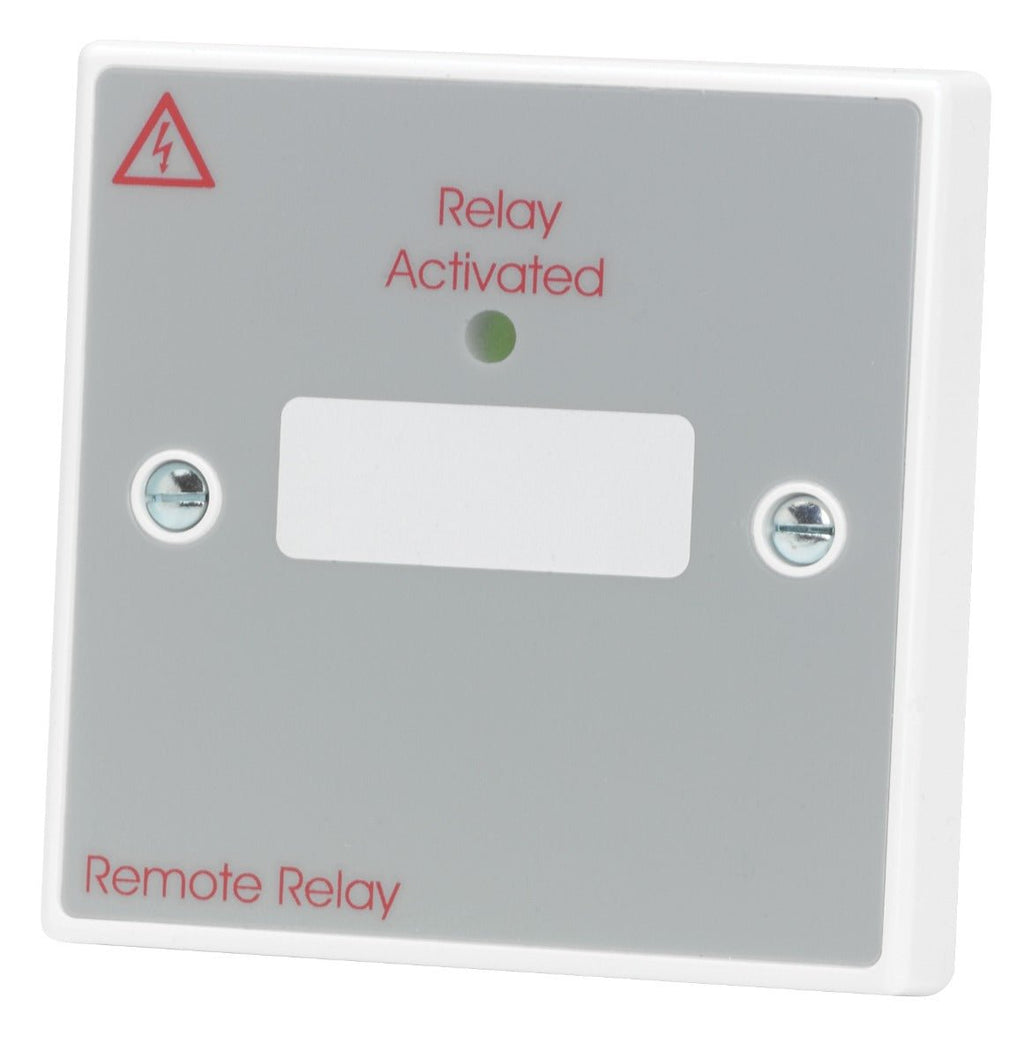

C-Tec BF376 24V 5A Relay on Plate
Product Description
A general purpose, double-pole, polarised 24V 5A relay designed for use in 24V fire alarm systems. Can be connected to a suitable control panel relay output or a standard polarised fire alarm sounder circuit to operate door retaining magnets, rollershutter doors, etc.
Incorporates a high intensity LED which illuminates red when the relay is active.
Product Details
| Activation current: | Typically 30mA @ 24VDC. |
| Indicators: | Red Relay Activated LED. |
| Connections: | +V; -V (Supply); NC; C; NO (SW1 & SW2). Contact rating @ 24VDC is 5A (resistive) 2A (inductive); Contact rating @ 240VAC is 5A (resistive) 2A (inductive) |
| Product dimensions (mm): | 85 W x 85 H x D 27mm (Can be mounted on a standard UK 25mm single gang flush or surface back box). |
| Construction & finish: | White PVC plate; Light grey label; Silver nickel contacts. |
| IP Rating: | IP40. |
| Weight: | 78g. |
| Operating conditions/temperature: | -10ºC to +60ºC. |
Specification
Internal external |
Internal |
Product type |
Fire Alarm |
