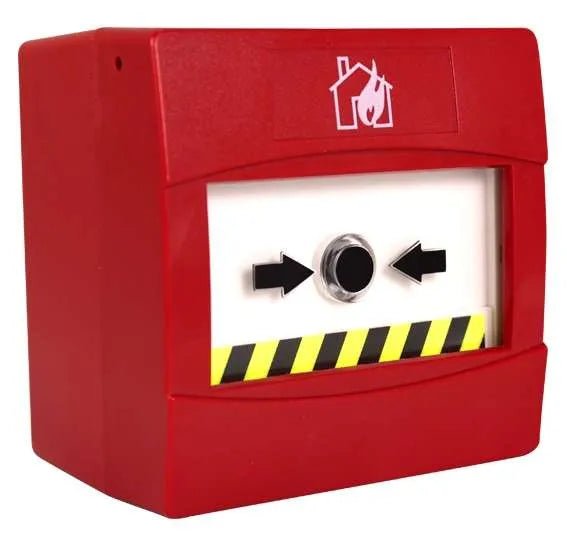

C-Tec BF370S Manual ‘No Break’ Call Point, Surface Mount
Product Description
- Certified to EN54 Parts 11 (LPCB) and 13 (BSI).
- Smooth-action resettable element mimics the feel of breaking glass.
- Supplied with a red back box, reset key and ‘Not in Use’ label.
- Red LED ‘alarm ring’ illuminates call point face upon activation.
- Photoluminescent operating window remains visible for up to 5 minutes.
- Note an additional BF370SFP red flush mounting plate is required if you wish to flush mount the BF370S
Product Details
| Supply/operating voltage: | 4.5-30Vdc |
| Product dimensions (mm): | 87 W x 87 H x D 62mm (includes back box). Depth without box 36mm. |
| Construction & finish: | Red ABS. |
| IP Rating: | IP24. |
| Weight: | 0.19kg. |
| Properties: | Supplied with a Series 470R & 680R resistor (value selected by wiring connection). |
| Operating conditions/temperature: | -30ºC to +70ºC. |
