Product Details:

Supply wiring : 2-wire monitored, polarity insensitive.

Supply/operating voltage : 18-33VDC (sounders active); Less than 15VDC (sounders off).

Quiescent current : 100µA @ 12VDC. (Max. surge current 200µA).

Nominal SPL (Sound Pressure Level) : Up to 99dB(A) @ 1m. Note the tone frequency incorporated into this device is the Apollo Evacuate tone (840Hz for 0.5s and 546Hz for 0.5s).

Alarm current : 17.5mA @ 24VDC (nominal).

Product dimensions (mm) : 97.5mm diameter x 104mm deep.

Construction & finish : TBC.

IP Rating : IP65

Weight : 225g.

Operating conditions/temperature : TBC.

Key Features:

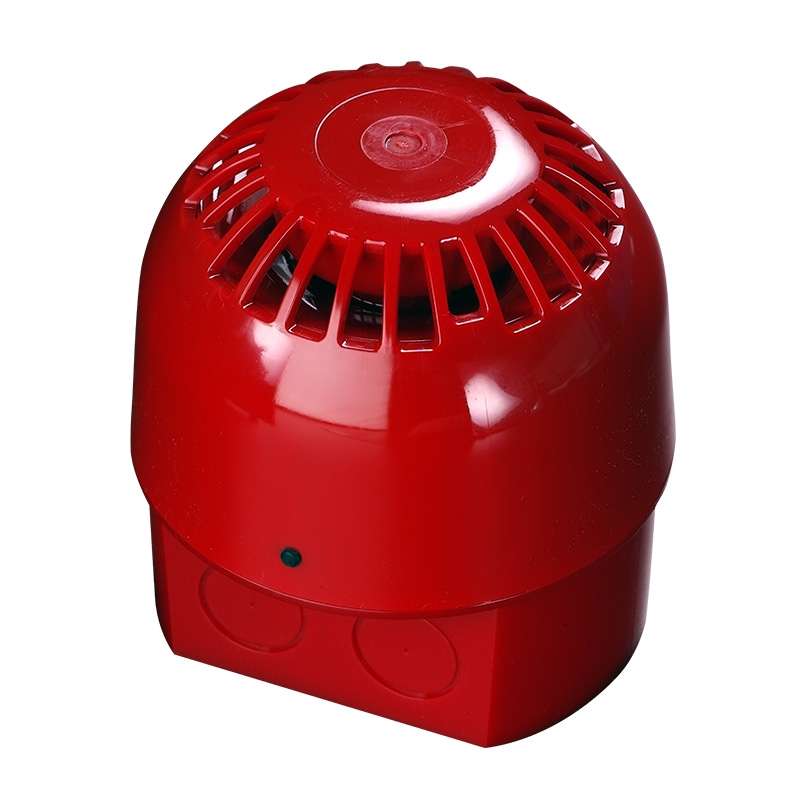

• A powerful wall-mounting open-area Sounder suitable for use with C-TEC’s CFP AlarmSense range of 2-8 Zone Two-Wire Fire Panels.

• IP65 rated.

• Up to 99dB(A) sound output at 1m.

• Device locking facility.

• Max. five Open-Area Alarm Devices per AlarmSense zone
