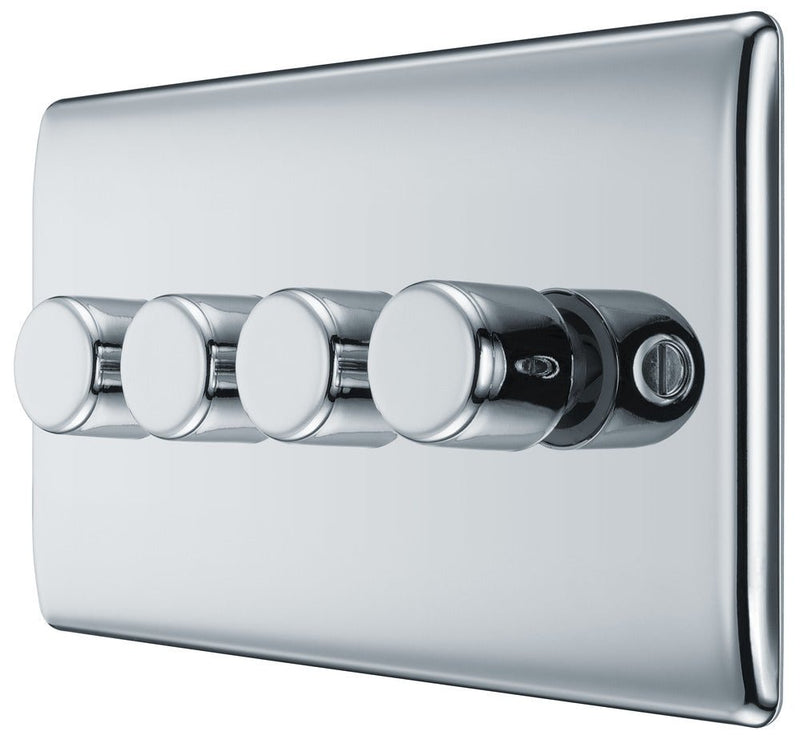

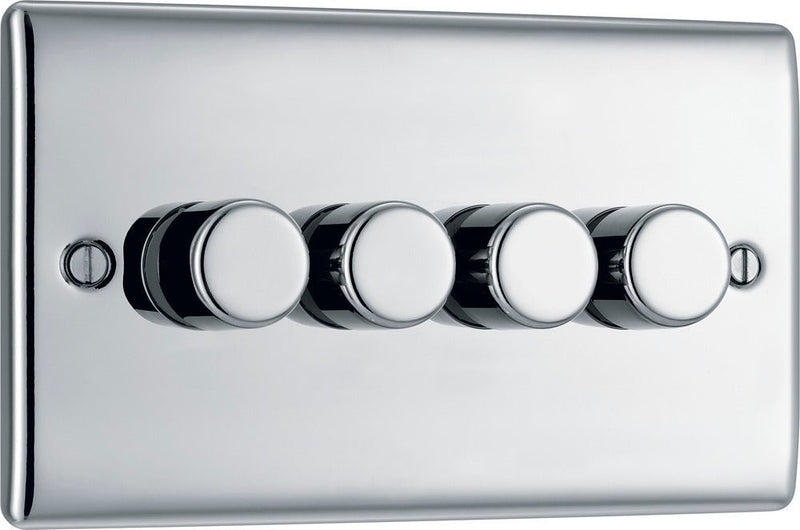

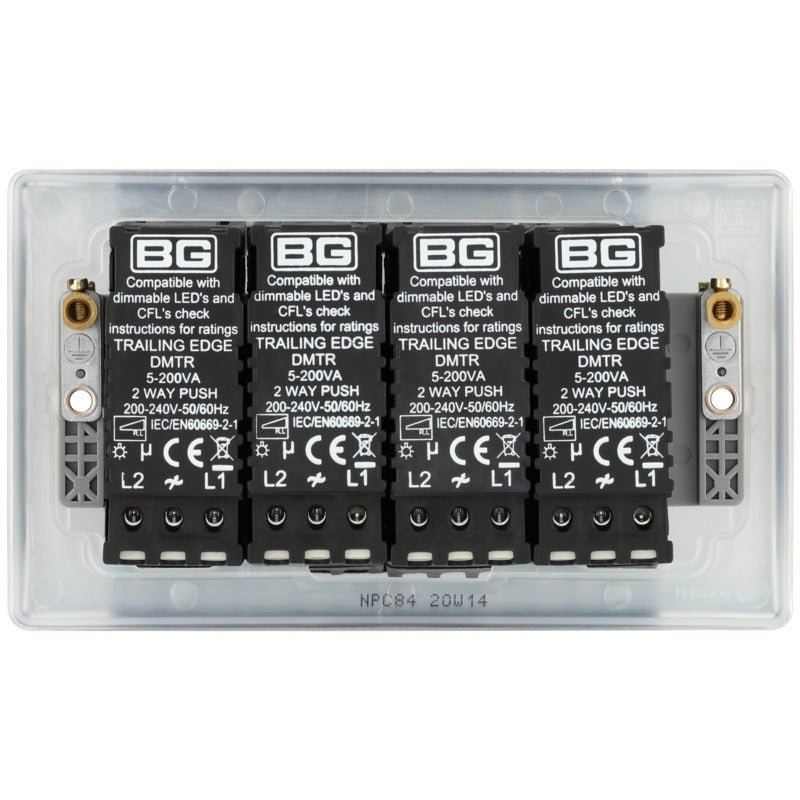

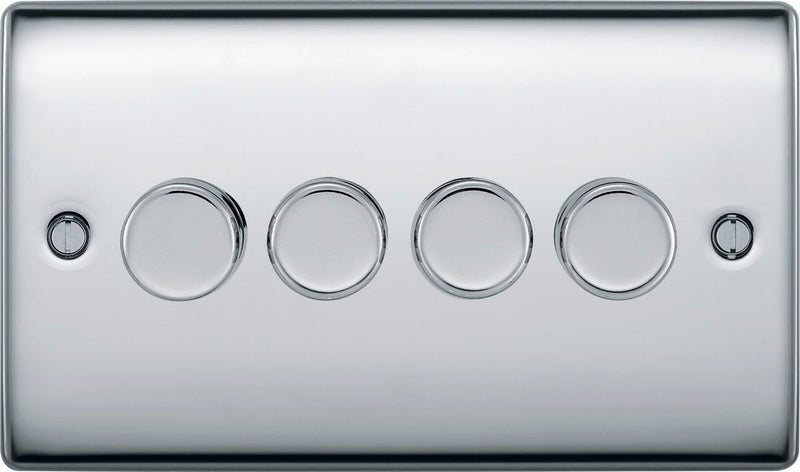

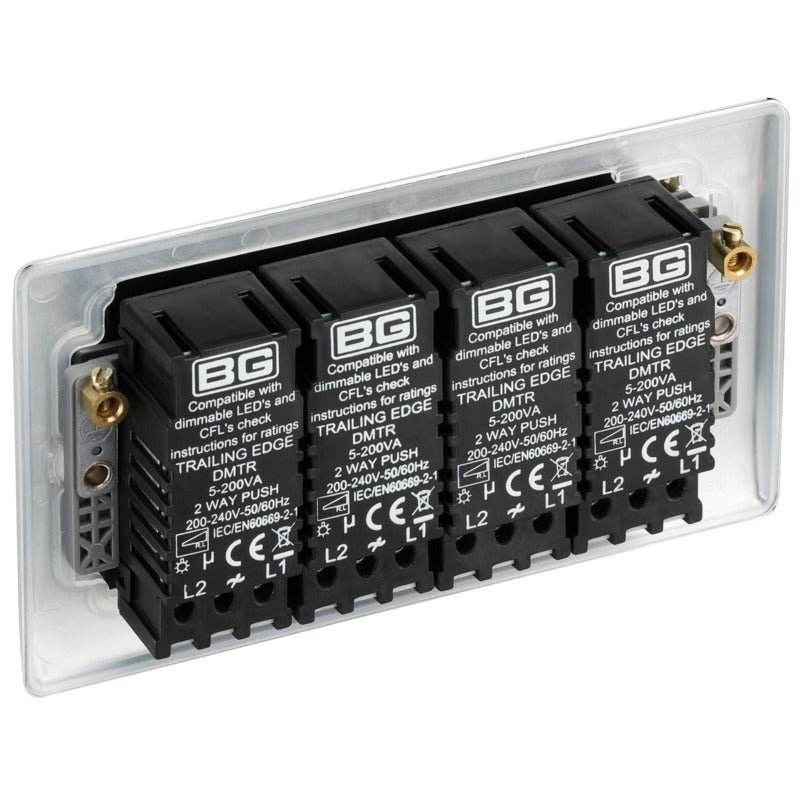

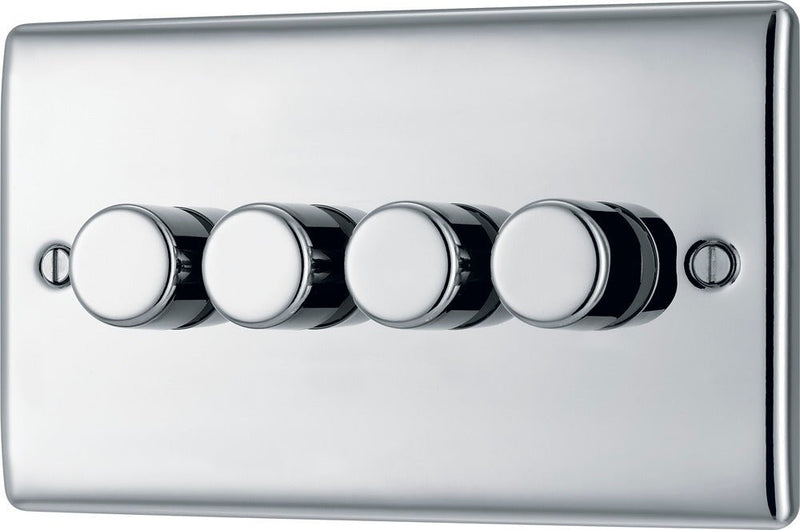

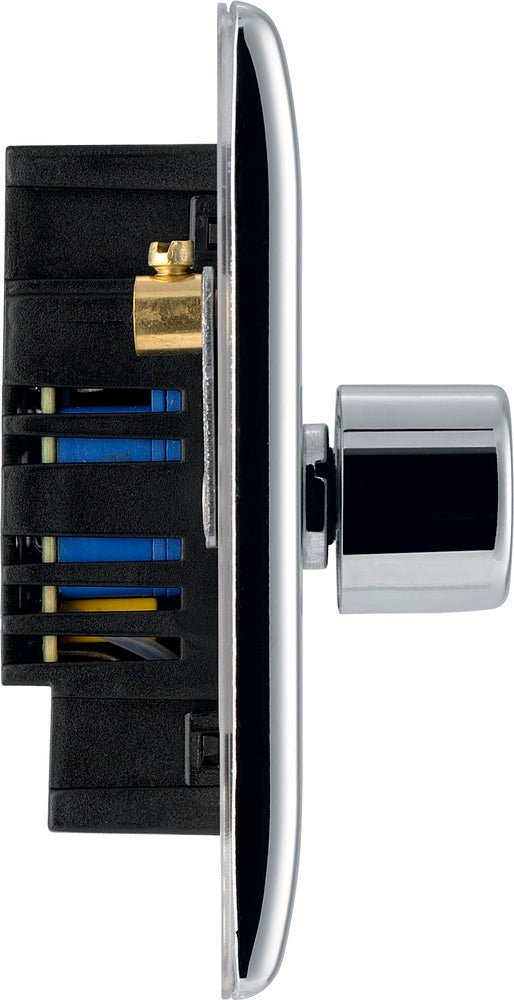

BG NPC84 Nexus Metal Polished Chrome Intelligent 400W Quadruple Dimmer Switch, 2-Way Push On-Off
Product Description
Intelligent trailing edge dimmers have a lower minimum load than leading edge dimmers, offering greater compatibility for LED, Halogen, CFL and incandescent lamps
Soft start brings the lights to a set level in around 1 second and extends the life of lamps
Overload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers, and will turn the lights down or off until the load is corrected
Smooth dimming control
Silent operation - no noise when dimming
Support for lower wattage lamps eliminates flicker
Rotary dimmer control with push on/off function
Fixed integrated plastic gasket to protect metal edges from
moisture
Stylish modern profile with colour matched fixing screws
Technical Details
| Standard(s) | BS EN 60669-2-1 |
| Asta Approval | License Number 1019 |
| Voltage | 200-250V AC |
| Load Rating (Max/Min per module | |
| Dimmable LED | 5-100W |
| Tungsten/Incandescent | 5-200W |
| Halogen | 20-200W |
| Dimmable Compact Flourescent (CFL) | 5-100W |
| Type | Trailing Edge |
| Terminal Capacity | 3 x 1mm ² 2 x 1.5mm ² 1 x 2.5mm ² |
| RoHS Directive | Yes |
| WEEE Directive | Yes |
| Mounting Box Depth (Min) | 25mm |
| Fixing Centres | 120.6mm |
| Size | 86mm x 146mm x 44.3mm |
Specification
Finish ii |
Polished Chrome |
Gtin |
5050765020251 |
Insert colour |
White |
Internal external |
Internal |
Neon |
Yes |
Product type |
Wiring Accessories |
Screwless |
No |
Size |
Iiyama |
Unit size |
2 Gang |
Wiring accessory type |
Dimmer |
