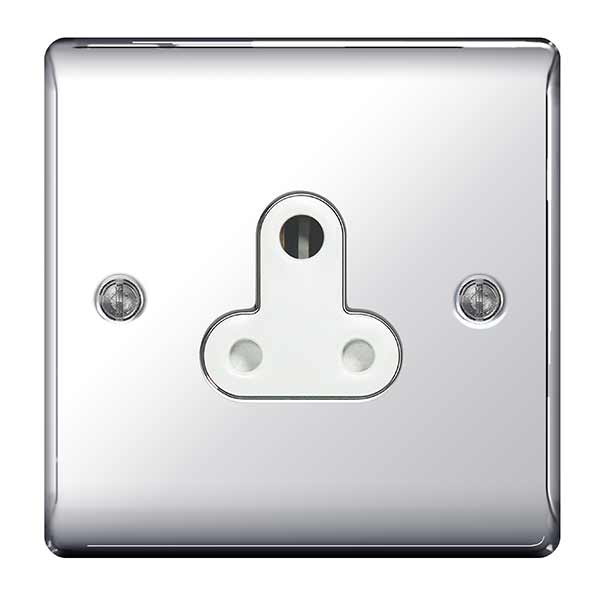

BG NPC29W Nexus Metal Polished Chrome Single Round Pin Unswitched 5A Socket
Product Description
This 5A round pin socket can be used to connect lamps to a lighting circuit. The polished chrome finish backplate has an anti-fingerprint lacquer and a sleek and slim profile, with softly rounded edges to add a touch of luxury to your decor.
Technical Details
| Standard(s): | BS 546 |
| Rating: | 5 Amp 250V~ |

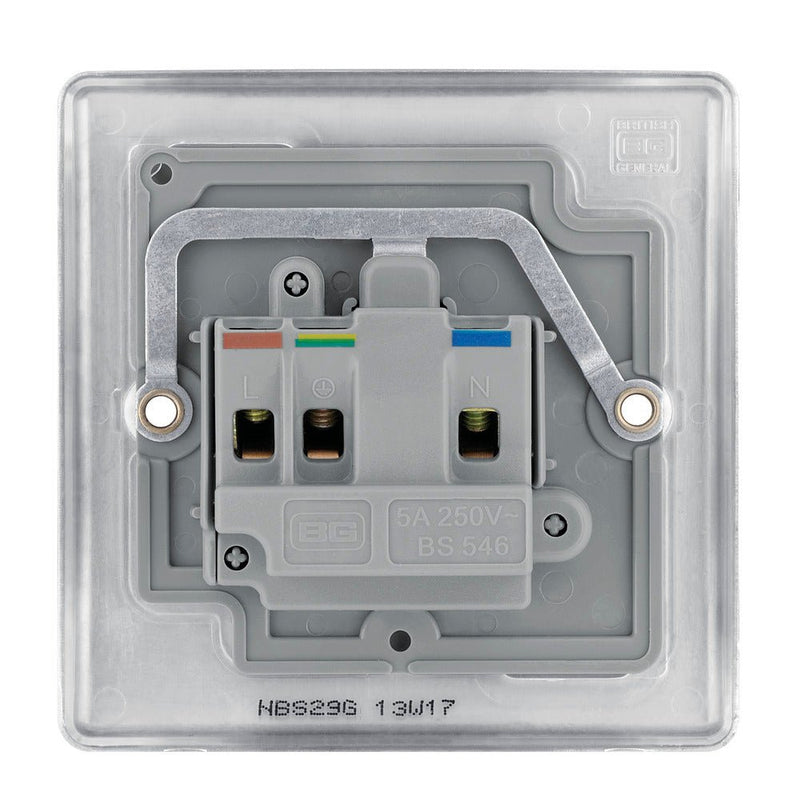

| Terminal Capacity - L & N: | 4 x 1.0mm ² 3 x 1.5mm ² 1 x 2.5mm ² 1 x 4.0mm ² |
| RoHS Directive: | No |
| WEEE Directive: | No |
| Mounting Box Depth (Min): | 25mm |
| Fixing Centres: | 60.3mm |
| Size: | 86mm x 86mm x 23.6mm |
More Details
- Easy to install, supplied with fixing screws and installation instructions
- Moisture control gasket, prevents tarnishing from new plaster
- Sleek and slim premium metal with softly rounded edges
- Angled in-line terminals provide easy access for quick installation
- Colour coded terminals for easy identification
- Twin earth fitted as standard for high integrity circuits
- Captive screws prevent screw loss
- Anti-fingerprint lacquer reduces unsightly fingerprints
- 5 Amp unswitched socket
- White insert
Specification
Finish ii |
Polished Chrome |
Gtin |
5050765020022 |
Insert colour |
White |
Internal external |
Internal |
Neon |
No |
Product type |
Wiring Accessories |
Screwless |
No |
Switched |
No |
Unit size |
1 Gang |
Wiring accessory type |
Socket |
