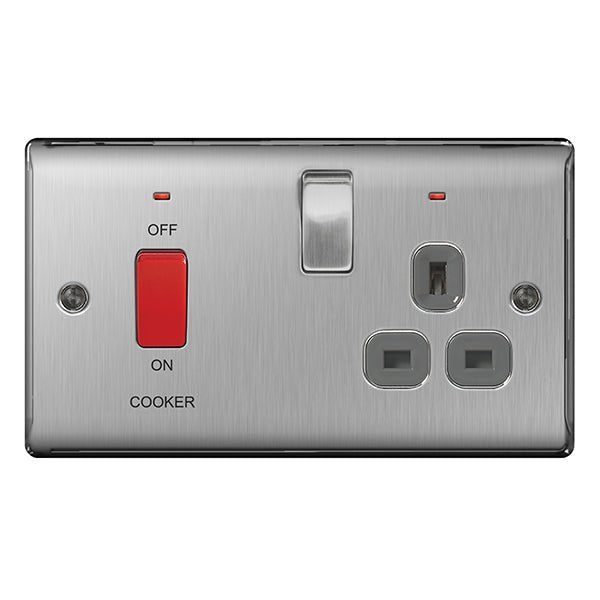

BG NBS70G Nexus Metal Brushed Steel 45A Cook. Control Unit w- Swi. 13A Power Skt. + Neon
Product Description
This 45A cooker control unit includes a 13A socket for an additional appliance outlet, and has flush LED indicators above the socket and switch.
This switch has a premium brushed steel finish with anti-fingerprint lacquer, a sleek and slim profile and softly rounded edges to add a touch of luxury to your decor.
Technical Details
| Standard(s): | BS 4177 |
|
Contact Gap: |
3.0mm minimum |
| Switch type: | Double pole |
| Rating: | 45 Amp 250V~ |

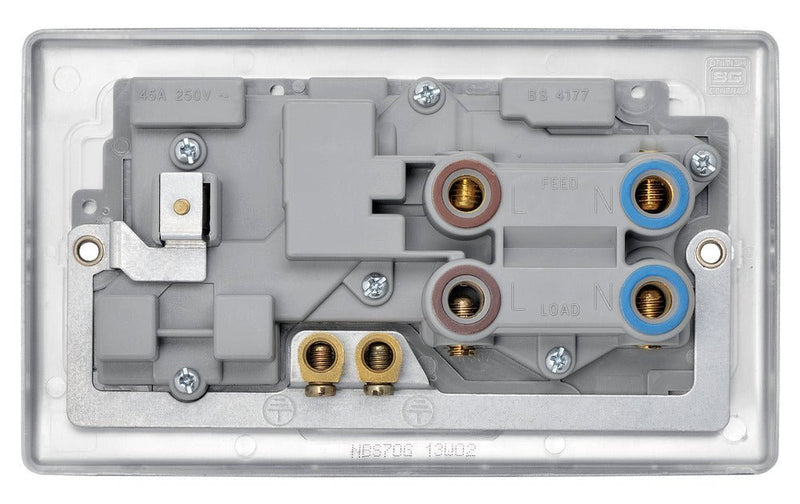

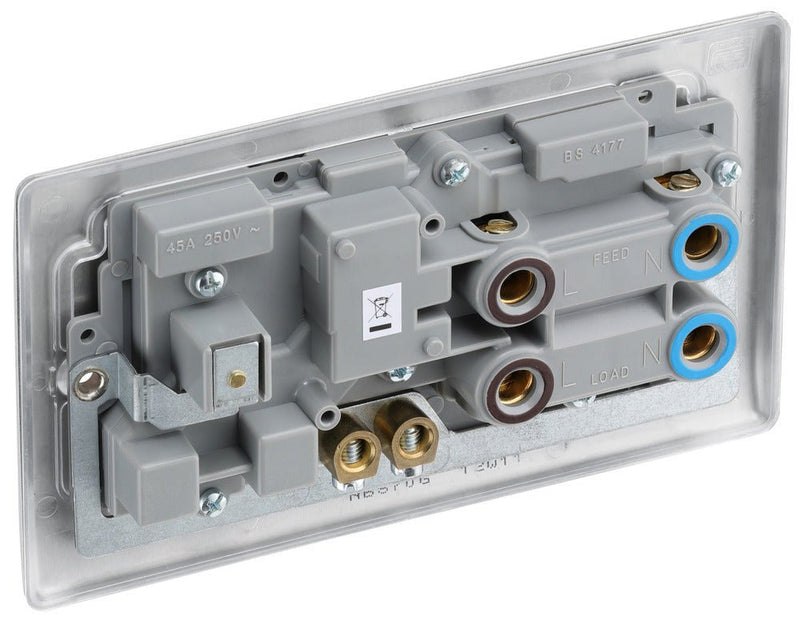

| Terminal Capacity - L & N: | 4 x 4.0mm ² 3 x 6.0mm ² 1 x 16.0mm ² |
| Terminal Capacity - Earth: |
3 x 4.0mm ² 2 x 6.0mm ² 1 x 16.0mm ² |
| RoHS Directive: | No |
| WEEE Directive: | No |
| Mounting Box Depth (Min): | 47mm |
| Fixing Centres: | 120.6mm |
| Size: | 146.5mm x 86mm x 31.8mm |
More Details
-
Easy to install, supplied with fixing screws and installation instructions
-
Colour coded terminals for ease of identification
-
13A socket for additional appliance outlet
-
Flush LED power Indicator above socket and switch
-
Sleek and slim premium metal with softly rounded edges with no visible plastic around the switch and an anti-fingerprint lacquer
-
Twin earth fitted as standard for high integrity circuits
-
Grey socket insert
-
Moisture control gasket, prevents tarnishing from new plaster
-
Double Pole switching for the peace of mind of a safer installation
-
Captive screws prevent screw loss
Specification
Finish ii |
Brushed/Satin Chrome |
Gtin |
5050765019002 |
Insert colour |
Grey |
Internal external |
Internal |
Neon |
Yes |
Product type |
Wiring Accessories |
Screwless |
No |
Switched |
Yes |
Unit size |
2 Gang |
Wiring accessory type |
Cooker switch |
