BG NBS50 Nexus Metal Brushed Steel Switched 13A Fused Connection Unit
Product Description
This switched and fused 13A connection unit provides an outlet from the mains containing the fuse, and is ideal for spur circuits and hardwired appliances.
This brushed steel finish unit has a sleek and slim profile, with softly rounded edges to add a touch of luxury to your decor.
Technical Details
| Standard(s): | BS 1363 Part 4 |
|
Contact Gap: |
3.0mm minimum |
| Switch type: | Double pole |
| Rating: | 13 Amp 250V~ |
| Terminal Capacity - L & N: | 3 x 2.5mm ² 2 x 4.0mm ² 1 x 6.0mm ² |
| RoHS Directive: | No |
| WEEE Directive: | No |
| Mounting Box Depth (Min): | 35mm |
| Fixing Centres: | 60.3mm |
| Size: | 86mm x 86mm x 28.8mm |
More Details
-
Easy to install, supplied with fixing screws and installation instructions
-
Ideal for spur circuits and hard wired power appliances
-

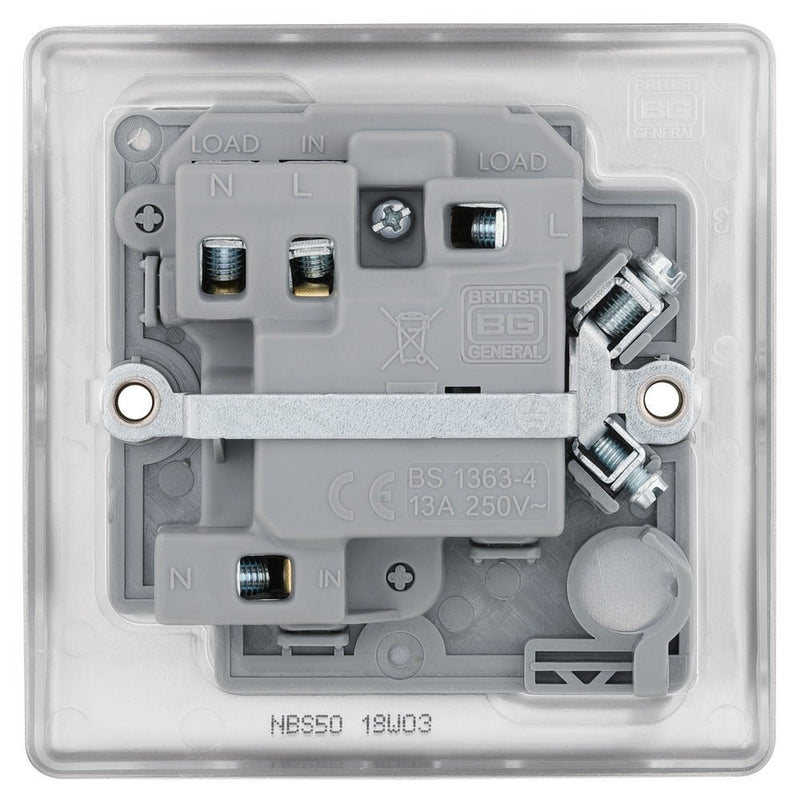

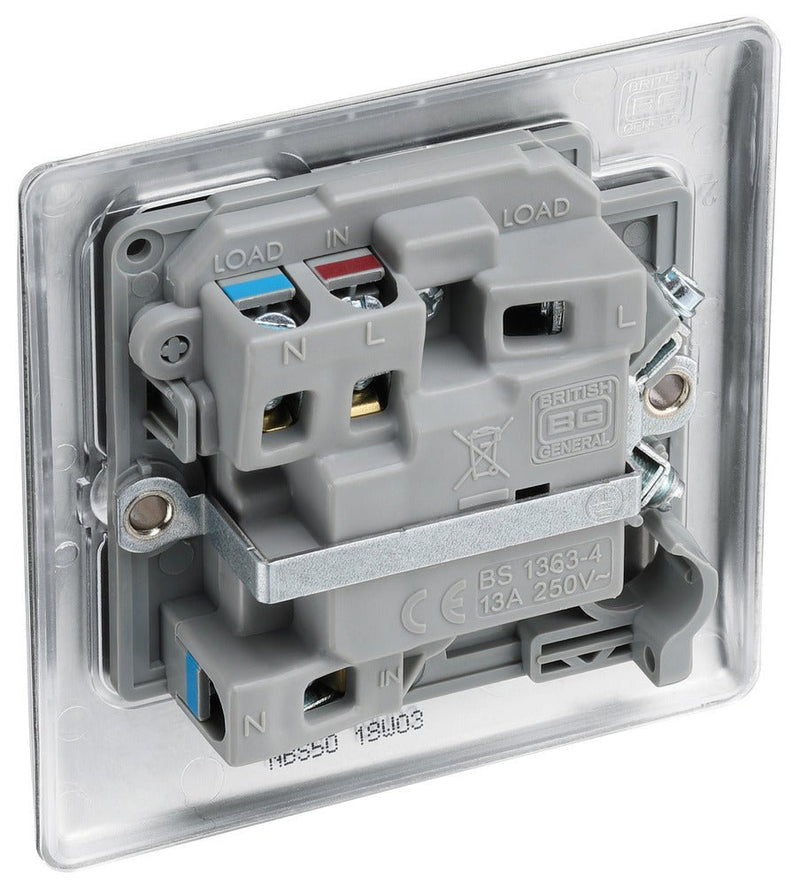

Angled colour coded terminals provide easy access for quick installation
-
Captive screws prevent screw loss
-
Sleek and slim premium metal with softly rounded edges
-
Moisture control gasket, prevents tarnishing from new plaster
-
No visible plastic around switch
-

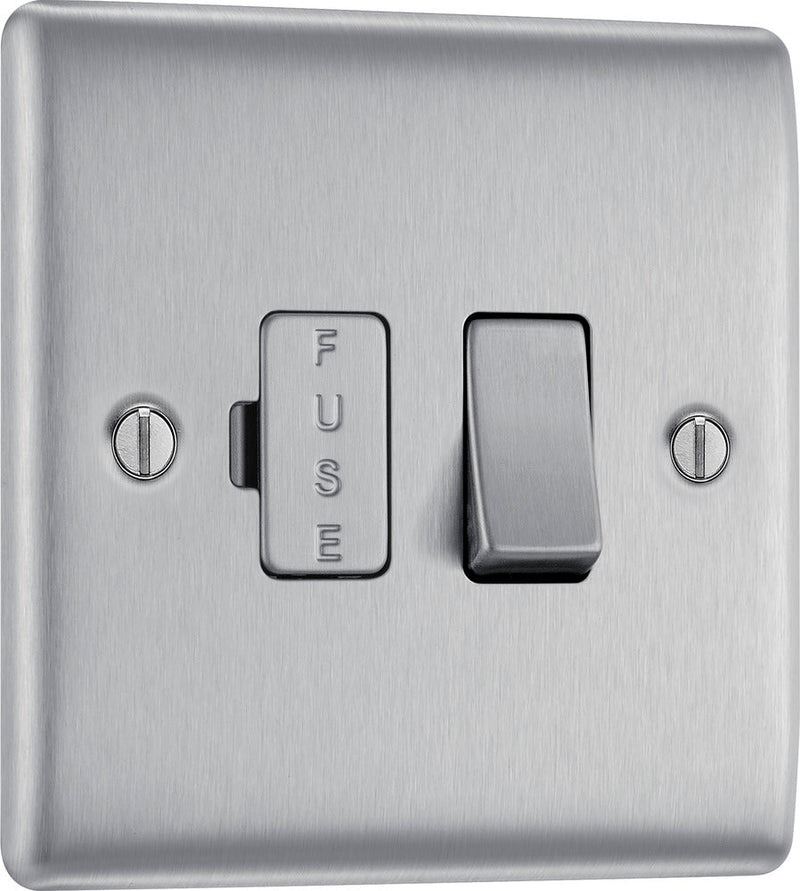

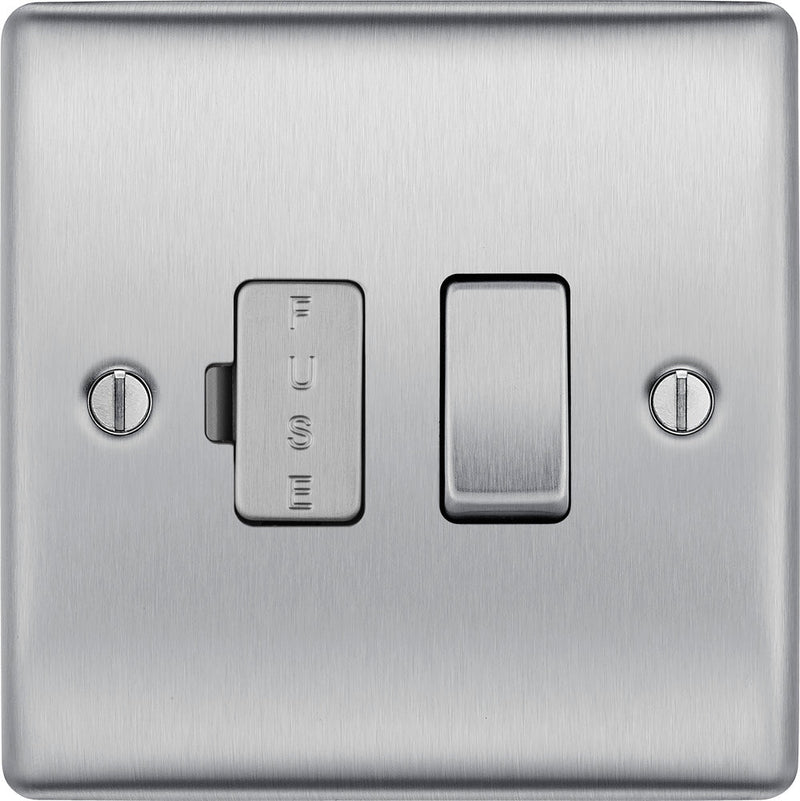

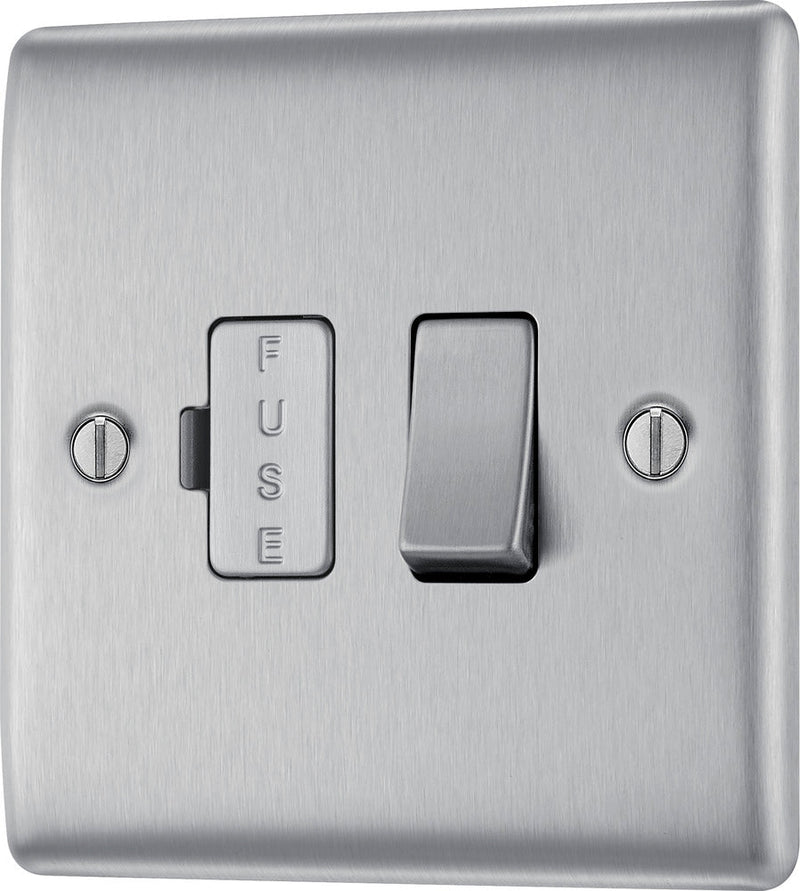

Embossed with 'Fuse' on the fuse cover
Specification
Finish ii |
Brushed/Satin Chrome |
Gtin |
5050765018951 |
Insert colour |
White |
Internal external |
Internal |
Neon |
No |
Product type |
Wiring Accessories |
Screwless |
No |
Size |
Iiyama |
Switched |
Yes |
Unit size |
1 Gang |
Wiring accessory type |
Spur |
