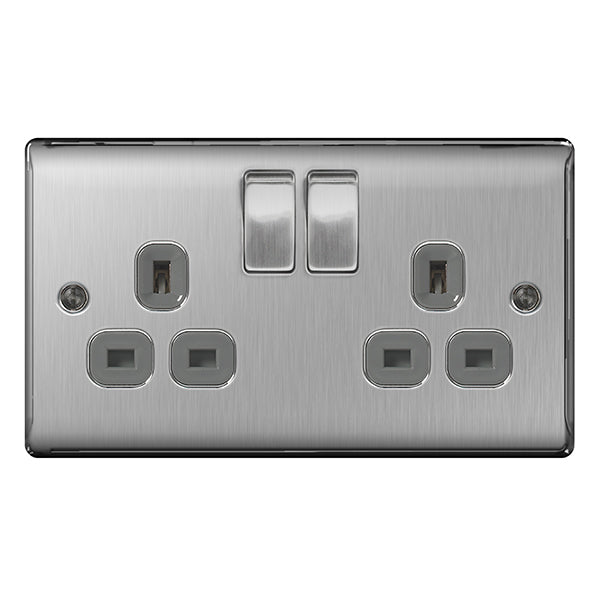

BG NBS22G Nexus Metal Brushed Steel Double Switched 13A Power Socket
Product Description
This brushed steel finish 13A double switched socket has a sleek and slim profile, with softly rounded edges and no visible plastic around the switches to add a touch of luxury to your decor.
This socket has been designed with angled in line colour coded terminals and backed out captive screws for ease of installation, and fits a 25mm back box making it an ideal retro-fit replacement for existing sockets.
Technical Details
| Standard(s): | BS 1363 Part 2 |
| Rating: | 13 Amp 250V~ |
| Switch type: | Double pole |
| Contact Gap: | 3.0mm minimum |
| Terminal Capacity: | 3 x 2.5mm ² 3 x 4mm ² 2 x 6.0mm ² |
| RoHS Directive: | No |
| WEEE Directive: | No |
| Mounting Box Depth(Min): | 25mm |
| Fixing Centres: | 120.6mm |
| Size: | 146.5mm x 86mm x 31mm |
More Details
- Easy to install, supplied with fixing screws and installation instructions
- Sleek and slim premium metal with softly rounded edges
-
Moisture control gasket, prevents tarnishing from new plaster
- No visible plastic around switches
- Angled, colour coded in-line terminals provide easy access for quick installation
- Fits 25mm box, ideal for quick and easy retro-fit
- Twin earth fitted as standard for high integrity circuits
- Captive screws prevent screw loss
- Grey insert
Specification
Finish ii |
Brushed/Satin Chrome |
Gtin |
5050765018890 |
Insert colour |
Grey |
Internal external |
Internal |
Neon |
No |
Product type |
Wiring Accessories |
Screwless |
No |
Switched |
Yes |
Unit size |
2 Gang |
Wiring accessory type |
Socket |
