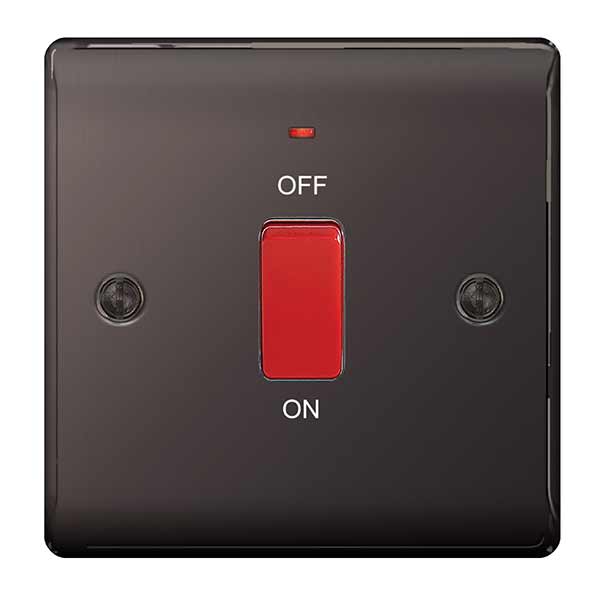

BG NBN74 Nexus Metal Black Nickel 45A Square Cooker Control Unit, With Power Indicator
Product Description
This 45A single switch for cookers is double poled for safety and has a flush power indicator.
This switch has a premium black nickel with an anti-fingerprint lacquer, a sleek and slim profile and softly rounded edges to add a touch of luxury to your decor.
Technical Details
Standard(s): | BS EN 60669 |
Contact Gap: |
3.0mm minimum |
Switch type: | Double pole |
Rating: | 45 Amp 250V~ |
Terminal Capacity - L & N: | 4 x 4.0mm ² 3 x 6.0mm ² 1 x 16.0mm ² |
Terminal Capacity - Earth: |
3 x 4.0mm ² 2 x 6.0mm ² 1 x 16.0mm ² |
RoHS Directive: | No |
WEEE Directive: | No |
Mounting Box Depth (Min): | 47mm |
Fixing Centres: | 60.3mm |
Size: | 86mm x 86mm x 29.3mm |
More Details
-
Easy to install, supplied with fixing screws and installation instructions
-
Ideal for cookers and ovens
-
Captive screws prevent screw loss
-
Twin earth fitted as standard for high integrity circuits
-
Sleek and slim premium metal with softly rounded edges, and no visible plastic around the switch
-
Anti-fingerprint lacquer to reduce unsightly fingerprint marks
-
Moisture control gasket, prevents tarnishing from new plaster
-
Minimum mounting box depth 47mm
-
Flush LED power indicator
-
Double Pole switching for the peace of mind of a safer installation"
Specification
Finish ii |
Black Nickel |
Gtin |
5050765023337 |
Internal external |
Internal |
Neon |
Yes |
Product type |
Wiring Accessories |
Screwless |
No |
Switched |
Yes |
Unit size |
1 Gang |
Wiring accessory type |
Cooker switch |
