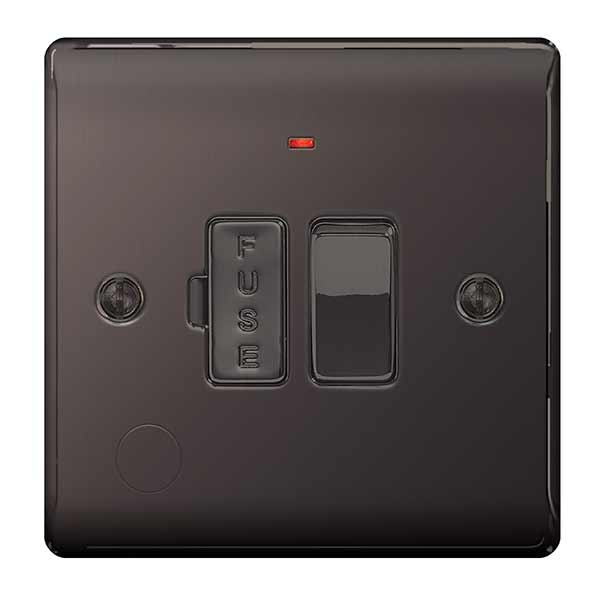

BG NBN53 Nexus Metal Black Nickel Swi. 13A Fused Conn. Unit, w- Neon & Cable Outlet
Product Description
This 13A fused and switched connection unit with power indicator provides an outlet from the mains containing the fuse, ideal for spur circuits and hardwired appliances.
The backplate has an optional flex outlet with removable blanking piece at the lower edge. This black nickel finish unit has a sleek and slim profile and an anti-fingerprint laquer, with softly rounded edges to add a touch of luxury to your decor.
Technical Details
| Standard(s): | BS 1363 Part 4 |
|
Contact Gap: |
3.0mm minimum |
| Switch type: | Double pole |
| Rating: | 13 Amp 250V~ |
| Terminal Capacity - L & N: | 3 x 2.5mm ² 2 x 4.0mm ² 1 x 6.0mm ² |
| RoHS Directive: | No |
| WEEE Directive: | No |
| Mounting Box Depth (Min): | 35mm |
| Fixing Centres: | 60.3mm |
| Size: | 86mm x 86mm x 28.8mm |
More Details
-
Easy to install, supplied with fixing screws and installation instructions
-
Ideal for spur circuits and hard wired power appliances
-
Angled colour coded terminals provide easy access for quick installation
-
Captive screws prevent screw loss
-
Sleek and slim premium metal with softly rounded edges and no visible plastic around the switch
-
Moisture control gasket, prevents tarnishing from new plaster
-
Flex outlet with removable blanking piece
-
Embossed with 'Fuse' on the fuse cover
-
Power Indicator with reliable, low energy LED
-
Anti-fingerprint lacquer reduces unsightly fingerprints"
Specification
Finish ii |
Black Nickel |
Insert colour |
White |
Internal external |
Internal |
Neon |
Yes |
Product type |
Wiring Accessories |
Screwless |
No |
Switched |
Yes |
Unit size |
1 Gang |
Wiring accessory type |
Spur |
