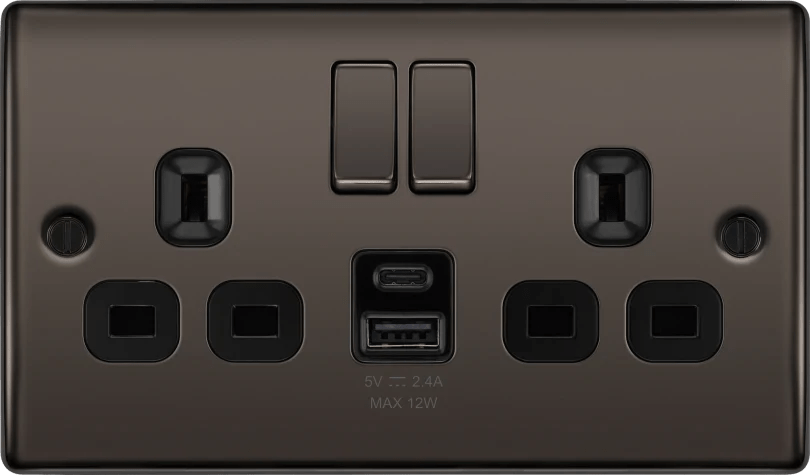

BG NBN22UAC12B Double switched single pole, with USB A + C (12W)
-
Free your sockets and charge all your devices - Ideal for mobile phones, MP3's and other USB chargeable devices
-
12W USB charging output with charge shared across two outlets - 1 x Type A, 1 x Type C
-

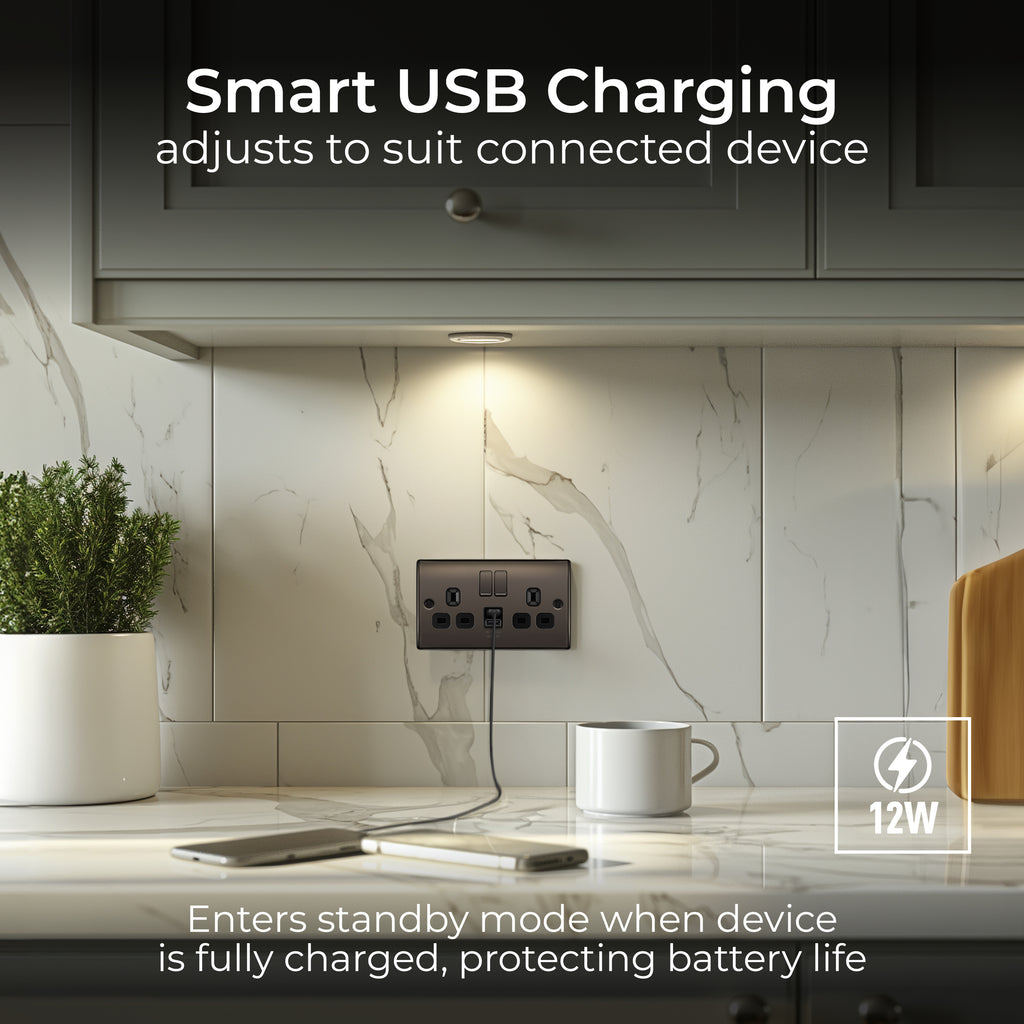

Smart USB - Standby mode when device is fully charged; AutoDetect's the USB device and adjusts charging pattern to suit; protective overload function
-

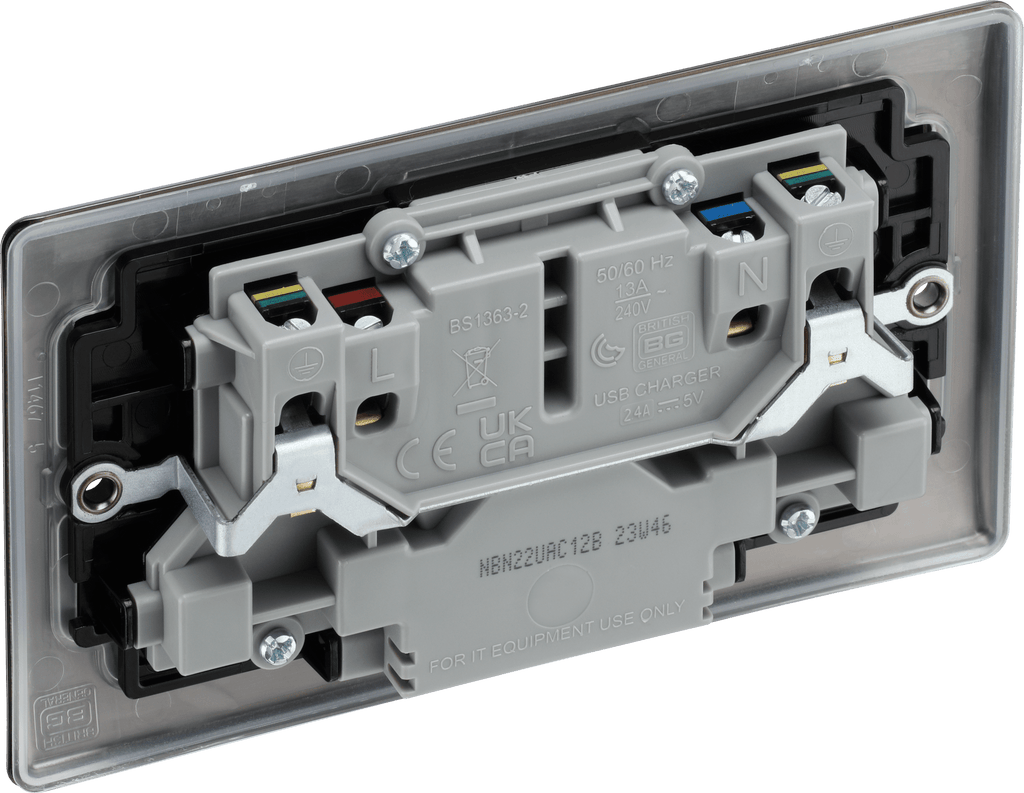

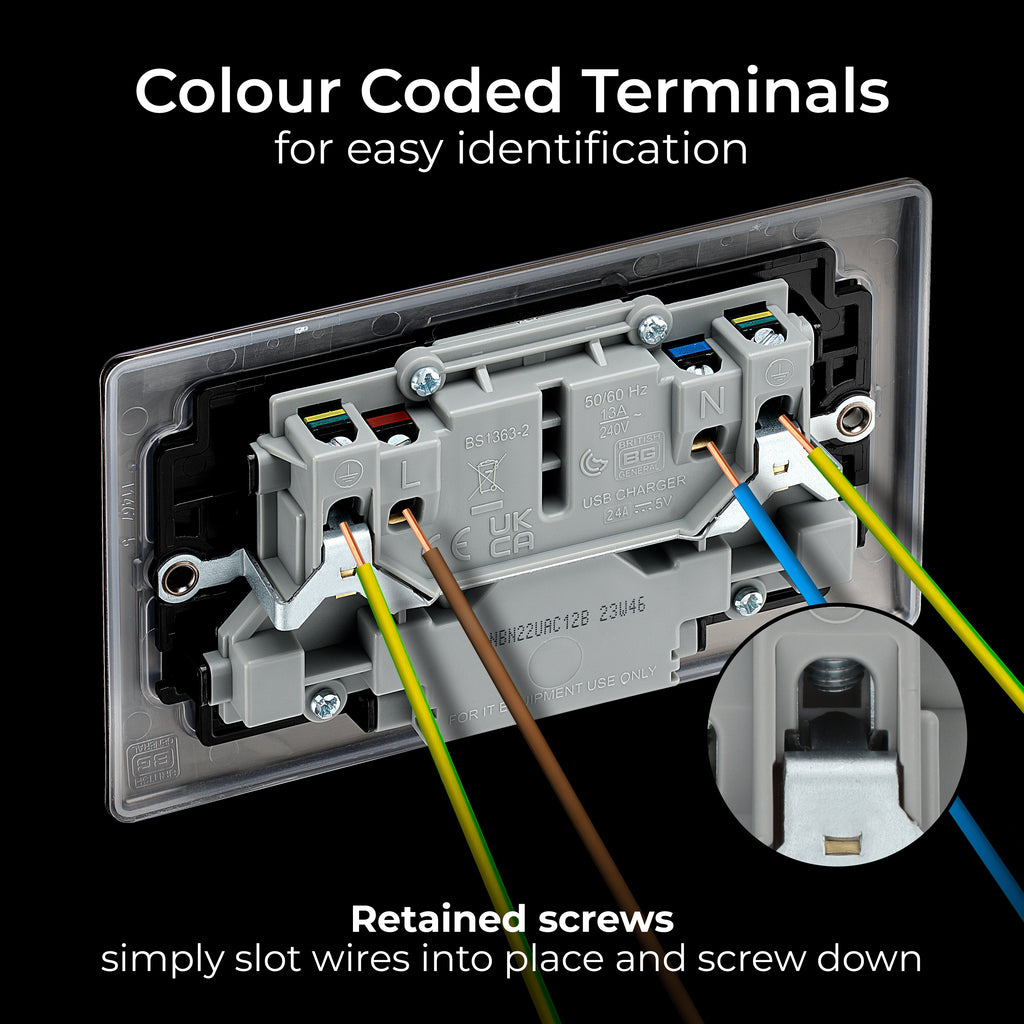

Angled colour coded terminals for easy identification and captive screws to prevent screw loss
-
Twin earth fitted as standard for high integrity circuits
-
Sleek and slim premium metal with softly rounded edges
-
Moisture control gasket protects metal edges from tarnishing
-
Minimum mounting box depth 25mm - ideal for retro-fit
-
General Colour: Black Nickel
-
Captive Terminal Screws: Yes
-
Backed-out Terminal Screws: Yes
-
Terminal Capacity (mm²): 3 x 2.5mm²
-
Front Plate Insert Colour: Black
-
Anti-fingerprint Lacquer: No
-
Anti-microbial Property: No
-
Fixing Screws Supplied: Yes
-
Number of Earth Terminals: 2
-
Number of Sockets:2
-
Number of Switches: 2
-
Screw Caps: No
-
Switch Type (Ways & Poles): Single Pole
-
USB Ports: 1 x Type A / 1 x Type C
-
Fixing Centres (mm): W-120.6
-
USB Power (W): 12
-
Maximum USB Power (W): 12
-
Operating Voltage (V): 220-240
-
Height (mm): 86
-
Width (mm: 146
-
Depth (mm): 32.1
-
Front Plate Height (mm): 6.9
