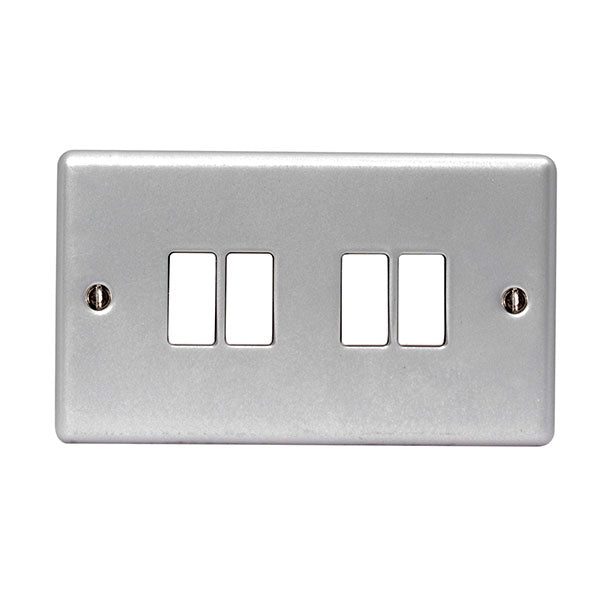

BG MC544 Metal Clad 10A, 2-Way Quadruple Switch
Product Description
This Metal Clad 10A light switch can operate 4 different lights, whilst the 2 way switching allows a second switch to be added to the circuit to operate the same light from another location, such as 2 different entrance points in a building or office space.
This metal clad switch is made from a rugged scratch resistant steel, and is suitable for everyday use in commercial and industrial environments.
Technical Details
| Standard(s): | BS EN 60669-1 |
| Rating: | 10 Amp, 250V~(10AX – no derating for inductive or fluorescent loads) |
| Contact Gap: | 3.0mm minimum |
| Terminal Capacity: | 4 x 1.0mm ² 4 x 1.5mm ² 2 x 2.5mm ² 1 x 4.0mm ² |
| RoHS Directive: | No |
| WEEE Directive: | No |
| Size: | 142mm x 81.5mm x 50mm |
Product Details
-
Easy to install, supplied with fixing screws and installation instructions
-
2 way switching allows for a second switch position in a circuit
-
Captive, backed out terminal screws for fast installation and to prevent screw loss
-
A rugged, scratch resistant range, suitable for everyday use in commercial and industrial environments
-
Mounting box with 1x 20mm knockouts in each side and rear face
-
Flat profile with rounded edges
Specification
Gtin |
5021166054404 |
Insert colour |
White |
Internal external |
Internal |
Product type |
Wiring Accessories |
Screwless |
No |
Switched |
Yes |
Unit size |
2 Gang |
Wiring accessory type |
Switch |
