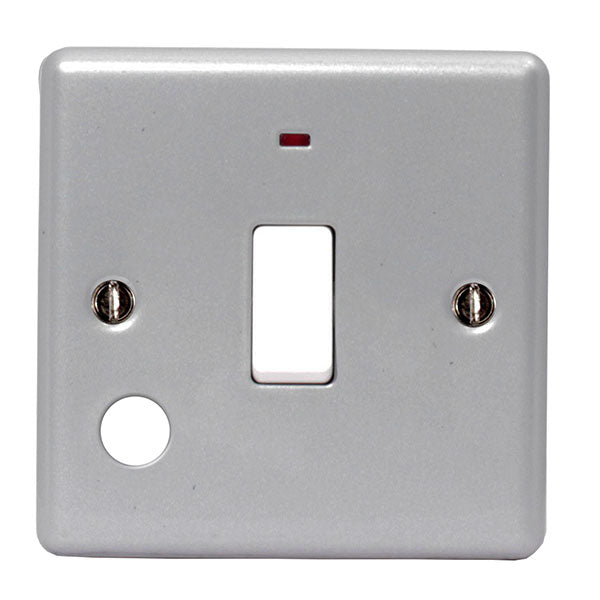

BG MC531 Metal Clad Control Switch with Power Indicator DP 20A
Product Description
This metal clad switch is made from a rugged scratch resistant steel, and is suitable for everyday use in commercial and industrial environments.
Technical Details
| Standard(s): | BS EN 60669-1 |
| Rating: | 20 Amp 250V~ |
| Contact Gap: | 3.0mm minimum |
| Switch type: | Double pole |
| Terminal Capacity: | 3 x 2.5mm ² 2 x 4.0mm ² 1 x 6.0mm ² |
| RoHS Directive: | No |
| WEEE Directive: | No |
| Size: | 81.5mm x 81.5mm x 51mm |
Product Details
-
Easy to install, supplied with fixing screws and installation instructions
- Captive, backed out terminal screws for fast installation and to prevent screw loss
-
A rugged, scratch resistant range, suitable for everyday use in commercial and industrial environments
-
Mounting box with 1x 20mm knockouts in each side and rear face
-
Flat profile with rounded edges
Specification
Gtin |
5021166053100 |
Insert colour |
White |
Internal external |
Internal |
Neon |
Yes |
Product type |
Wiring Accessories |
Screwless |
No |
Switched |
Yes |
Unit size |
1 Gang |
Wiring accessory type |
Switch |
