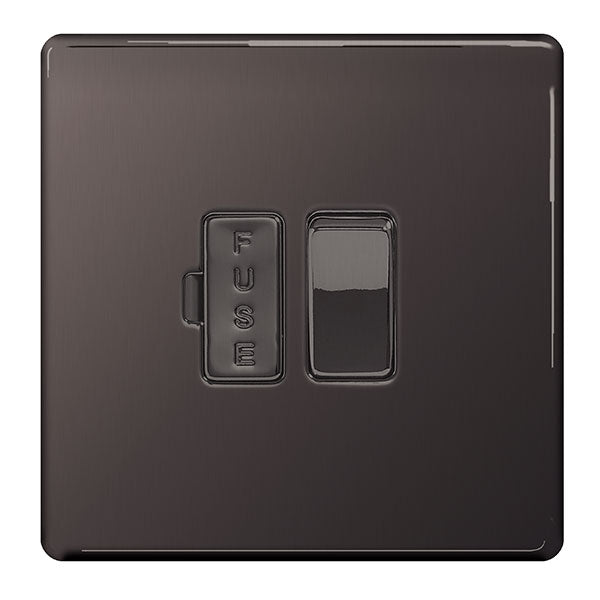

BG FBN50 Screwless Flatplate Black Nickel Switched 13A Fused Connection Unit
Product Description
This switched and fused 13A connection unit provides an outlet from the mains containing the fuse, and is ideal for spur circuits and hardwired appliances.
This brushed steel finish FCU has a screwless flatplate with an anti-fingerprint lacquer that clips on and off and sits flush against the wall, making it ideal for modern interiors.
Technical Details
| Standard(s): |
BS 1363 Part 4 |
| Rating: | 13 Amp 250V~ |
| Contact gap: | 3.0mm minimum |
| Switch type: | Double pole |
| Terminal Capacity: | 3 x 2.5mm ² 2 x 4.0mm ² 1 x 6.0mm ² |
| RoHS Directive: | No |
| WEEE Directive: | No |
| Mounting Box Depth (Min): | 35mm |
| Fixing Centres: | 60.3mm |
| Size: | 87.4mm x 87.4mm x 28.8mm |
More Details
-
Easy to install, supplied with fixing screws and installation instructions
-
Ideal for spur circuits and hard wired power appliances
-
Angled colour coded terminals provide easy access for quick installation
-
Captive screws prevent screw loss
-
Screwless front plate clips on and off easily
-
Moisture control gasket, prevents tarnishing from new plaster
-
Sleek flat profile with no visible plastic around switch
-
Embossed with 'Fuse' on the fuse cover
-
Anti-fingerprint lacquer to reduce unsightly fingerprints
Specification
Finish ii |
Black Nickel |
Gtin |
5050765006811 |
Insert colour |
White |
Internal external |
Internal |
Product type |
Wiring Accessories |
Screwless |
Yes |
Switched |
Yes |
Unit size |
1 Gang |
Wiring accessory type |
Spur |
