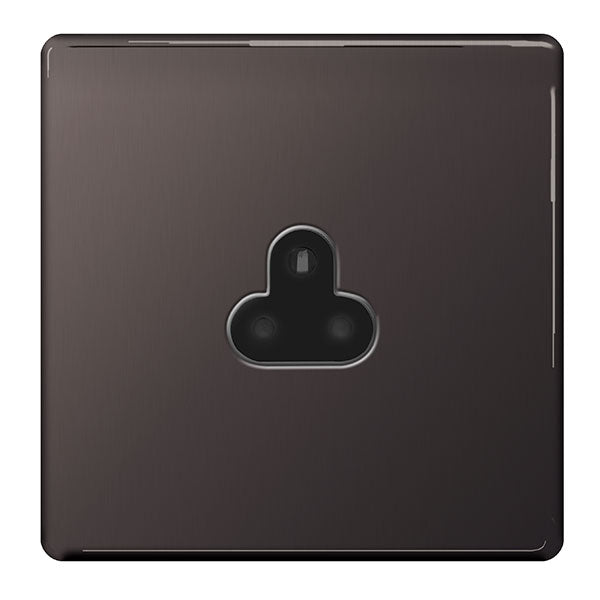

BG FBN28B Screwless Flatplate Black Nickel 2A Single Unswitched Socket
Product Description
This Metal Clad, unswitched 2A single socket with mounting box for your appliances.
The black nickel finish screwless flatplate clips on and off and sits flush against the wall, making it ideal for modern interiors.
Technical Details
| Standard(s): |
BS 546 |
| Rating: | 2 Amp 250V~ |
| Contact gap: | 3.0mm minimum |
| Terminal Capacity - L & N: | 3 x 2.5mm ² 3 x 4mm ² 2 x 6.0mm ² |
| RoHS Directive: | No |
| WEEE Directive: | No |
| Mounting Box Depth (Min): | 25mm |
| Fixing Centres: | 60.3mm |
| Size: | 87.4mm x 87.4mm x 24mm |
More Details
-
Easy to install, supplied with fixing screws and installation instructions
- Fits 25mm box, ideal for quick and easy retro-fit
-
Angled, colour coded terminals for easy identification and captive screws to prevent screw loss
-
Sleek flat profile
-
Easy “clip on and clip off†design, making it super easy to install and equally easy to remove to clean
-
The wall plate has a fixed integrated plastic gasket to protect metal edges from moisture, so you won’t see any visible plastic around the switches
-
Twin earth fitted as standard for high integrity circuits
Specification
Finish ii |
Black Nickel |
Insert colour |
Black |
Internal external |
Internal |
Product type |
Wiring Accessories |
Screwless |
Yes |
Switched |
No |
Unit size |
1 Gang |
Wiring accessory type |
Socket |
