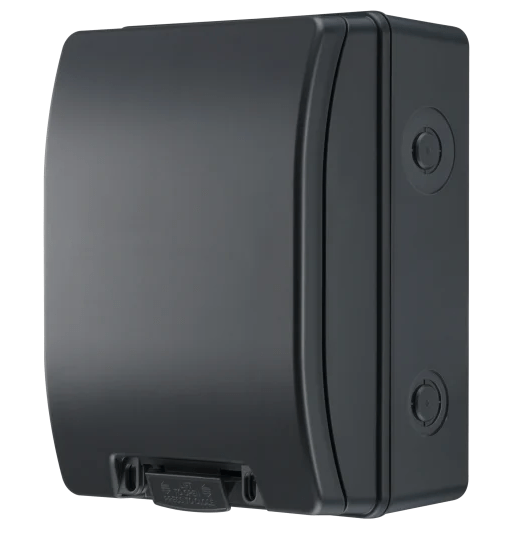

The EV consumer unit is an IP66-rated, exterior use plastic enclosure, providing a cost-effective alternative to metal units and specifically designed for outdoor electric vehicle (EV) installations.

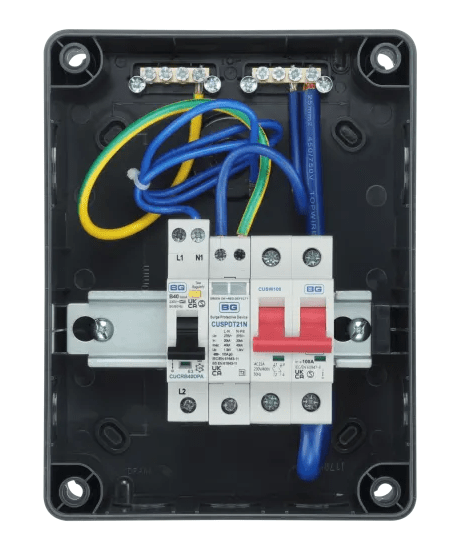

Supplied complete with:

1 x 40A 30mA Double Pole Bi-directional Type A RCBO
1 x 100A Main Switch
1 x Type 2 SPD

Dimensions: 218.4 (H)X 166.4 (W) X 114.6 MM

All internal cables, terminals, busbar and blanks.

Designed with backed-out and retained terminal screws for easy installation, along with multiple drill-out cable entry points—two on each side, one on the rear, and three on the base.

It also carries a Pollution Degree 3 certification for the installed devices, making it reliable in challenging conditions.

2MM PLASTIC RAL 7016 ANTHRACITE GREY

Experience unmatched durability, versatility, and ease of installation with the IP66 Consumer Unit.

Features

• Made from high-quality UV-stable plastic


• IP66 and IK07 rated durable UV resistant Polycarbonate construction


• Engineered for hassle-free setup, featuring a removable, raised DIN rail for fast fix of the enclosure, offering easier cable routing

• Supplied configured with a combination of devices suitable for PV/EV Applications


• Type-tested to BS/EN 61439-3, this IP66 consumer unit complies with the BS7671 18th Edition Amendment 3


• Backed by a 10-year Warranty for peace of mind
