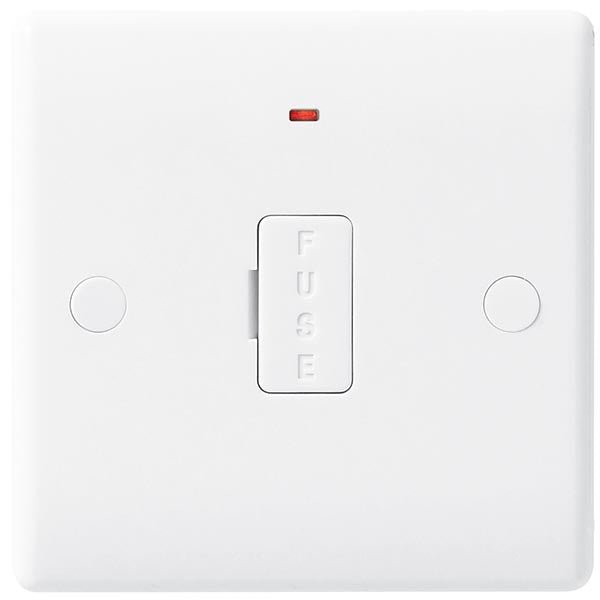

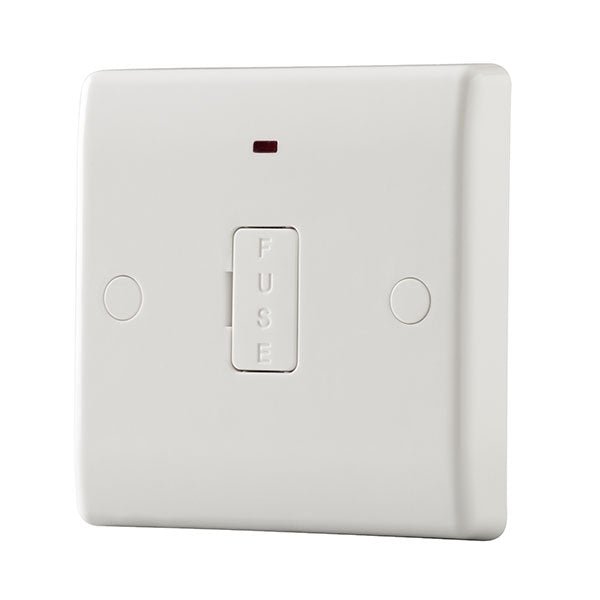

BG 856 White Nexus Moulded Unswitched 13A, Double Pole, Fused Connection Unit with Neon

BG 856 White Nexus Moulded Unswitched 13A, Double Pole, Fused Connection Unit with Neon


Sale price£3.30For 1
£3.96 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

BG 856 White Nexus Moulded Unswitched 13A, Double Pole, Fused Connection Unit with Neon

Product Description

This unswitched and fused 13A connection unit provides an outlet from the mains containing the fuse, and is ideal for spur circuits and hardwired appliances.

This unit has a high resistance to fading, discolouration and scratches, with anti-microbial properties proven to reduce bacterial development and inhibit the growth of of infectious diseases.
Finished with softly rounded edges and screw caps for a sleek appearance.

Technical Details

  • Colour: White
  • Current Rating: 13A
  • Dimensions: (H)86 mm x (W)86 mm
  • Voltage Rating 230V
  • Double pole
  • Neon power indicator
  • Terminal Capacity Earth 1 x 6.0
  • Terminal Capacity Live Neutral 3 x 2.5 2 x 4.0

More Details

  • Easy to install, supplied with fixing screws and installation instructions
  • Ideal for spur circuits and hard wired power appliances
  • Angled colour coded terminals for ease of installation
  • Captive screws prevent screw loss
  • Screw covers for sleek appearance
  • Embossed with 'Fuse' on the fuse cover
  • Fits 25mm box, ideal for quick and easy retro-fit
  • Manufactured using high grade thermoset Urea with inherent anti-microbial properties
  • Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
  • Round edge spacer option available to covert for flex out option (8CGS)

Specification

Finish ii

White Plastic

Gtin

5050765001519

Insert colour

White

Internal external

Internal

Neon

Yes

Product type

Wiring Accessories

Regulatory

BS 1363

Screwless

No

Switched

No

Unit size

1 Gang

Wiring accessory type

Spur
