Product Description

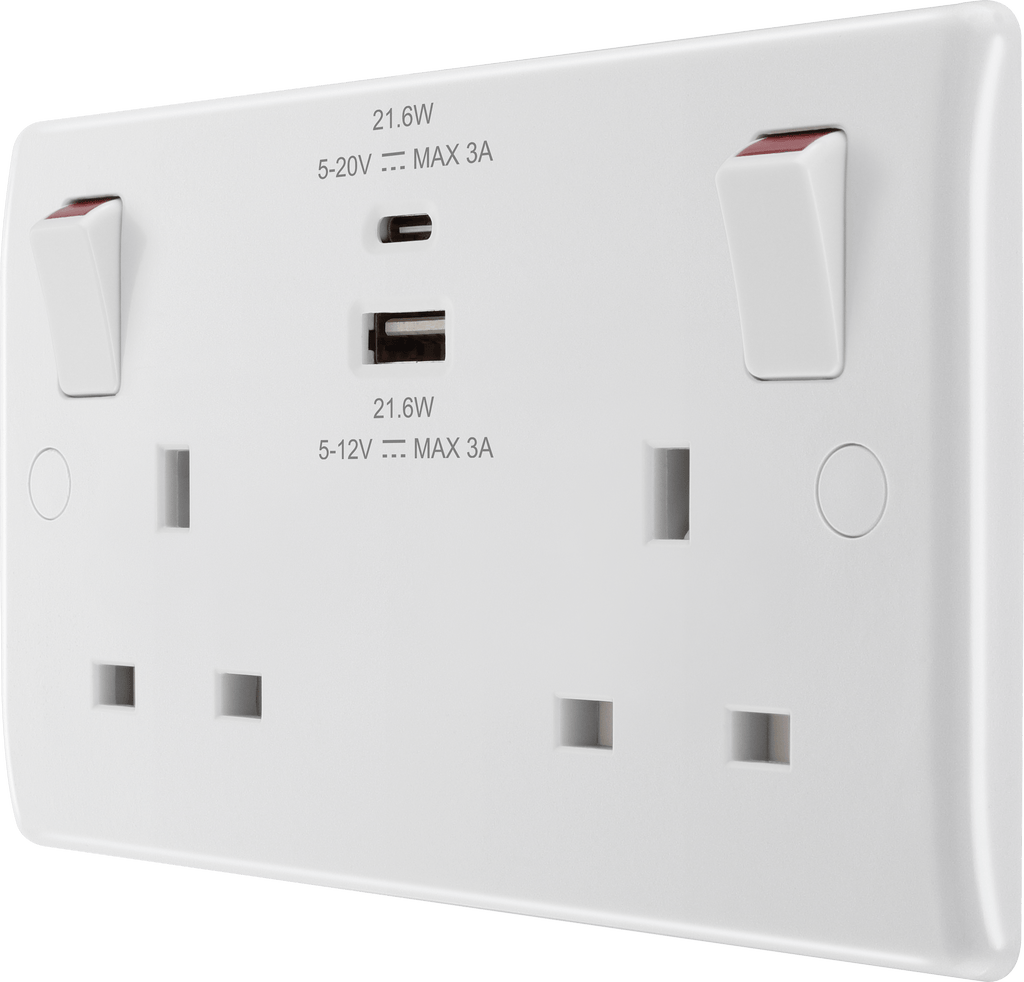

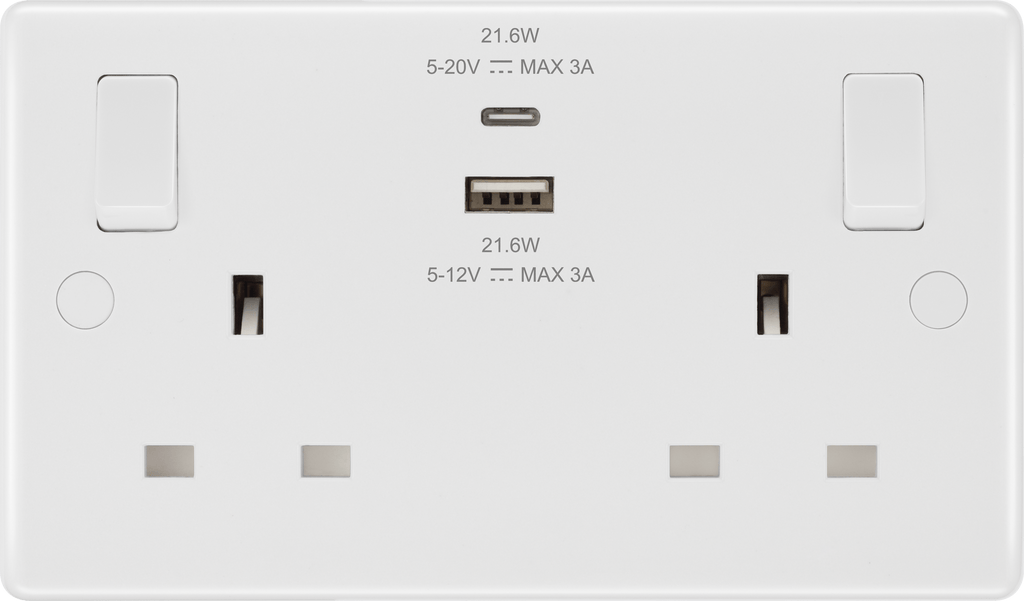

Free up your sockets using the Nexus White Moulded Socket with USB charger capability ideal for charging iPad, iPhone, tables, mobiles, cameras and more.

Features:

• 13A Power Sockets with integrated fast charge USB-A & USB C ports
• Supports PD and QC charging protocols and outputs the best voltage & current for optimum charging.

• Smart Charging - Intelligently adjusts the voltage to give devices the power they need, when they need it, without overcharging.

• Compatible with all smartphone brands including Apple, Samsung, Google and Huawei.

• Produced in white moulded urea material with inherent antimicrobial properties.

• Screw cover caps for a sleek appearance.

• Angled, colour coded terminals with captive screws.

• Twin earth for high integrity circuits.

• Minimum mounting box depth: 25mm


Technical Details

• Rating: 13 Amp 240V ~

• Contact Gap: 3.0mm minimum

• Switch Type: Single Pole

• Terminal Capacity - L & N: 3 x 2.5mm², 3 x 4.0mm² & 2 x 6.0mm²

• RoHS Directive: Yes

• WEEE Directive: Yes

• Mounting Box Depth (Min): 25mm

• Fixing Centres: 120.6mm


See datasheet attached for more details
