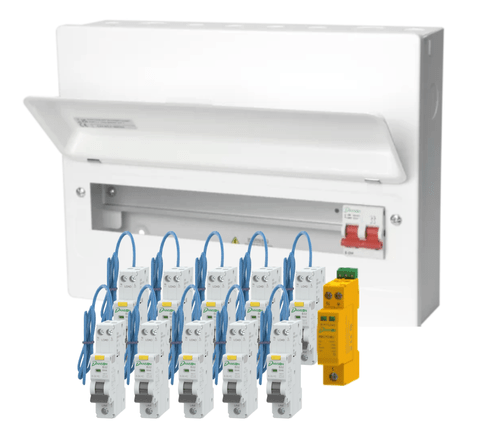

Danson 15 Way Consumer Unit w/ 100A MS, 1 Mod SPD and 10 RCBOs
CHOOSE YOUR RCBOs IN THE BOX ABOVE
Bundle Contains
- Danson 15-way consumer unit with a 100A main switch
- Surge protection device included
- 10 RCBOs of your choice (Choose RCBOs using the text box above)
Technical Details
- E-MM184-SPD1 consumer unit featuring 100A main switch, 1- module SPD and 10 RCBOs of your choice
- SPD Type II 20-40kA, 1P+N 275V AC with Remote Indication Contact,
- 15 uable ways (1 Integral neutral bar)
- Dimensions (HxWxD): 380 x 264 x 115.3mm
- Degree of protection to BS EN 60529 to IP2XC. Precautions must be taken to maintain the IP rating, e.g. use of cable glands and knockouts.
- BS EN 61439-3
- Cable entry points are located on top, bottom, side and rear surfaces
Specification
Consumer unit type |
Main Switch |
Depth |
115.3mm |
Enclosure material |
Metal |
Height |
380mm |
Internal external |
Internal |
Number of incoming ways |
18 |
Populated |
Partially Populated |
Product type |
Consumer Units |
Width |
264mm |
Downloads
Download product data sheets
