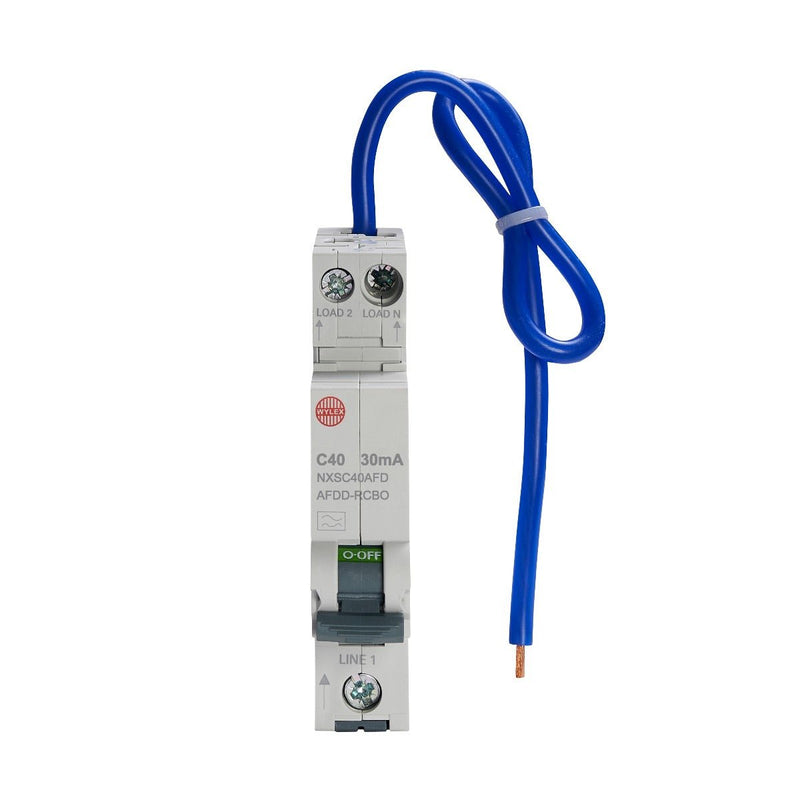

Product Details

• Rated current: 40A

• 6kA Type A Miniature AFDD RCBO

• Single module, Miniature AFDD/RCBO combined

• C curve (MCB), 30mA Type A (RCD)

• Single pole with switched neutral

• No miss busbar connection

• Fits NM & NMX consumer units

• Single pole with switched neutral

• No miss busbar connection

• Fits NM & NMX consumer units

• Number of poles (total): 2

• Number of protected poles: 1

• Rated voltage: 230 V


• Rated insulation voltage Ui: 400 V


• Rated impulse withstand voltage Uimp: 4 kV


• Rated fault current: 0.03A


• Leakage current type: A

• Current limiting class: 3

• Rated short-circuit breaking capacity Icn acc. EN 61009-1: 6 kA


• Disconnection characteristic: Undelayed

• Voltage type: AC

• Frequency: 50 Hz

• Release characteristic: C

• Concurrently switching N-neutral: Yes

• With interlocking device: No

• Over voltage category: 3

• Ambient temperature during operating: -5 - +40 °C


• Width in number of modular spacings: 1

• Built-in depth: 73 mm
