Product Details:

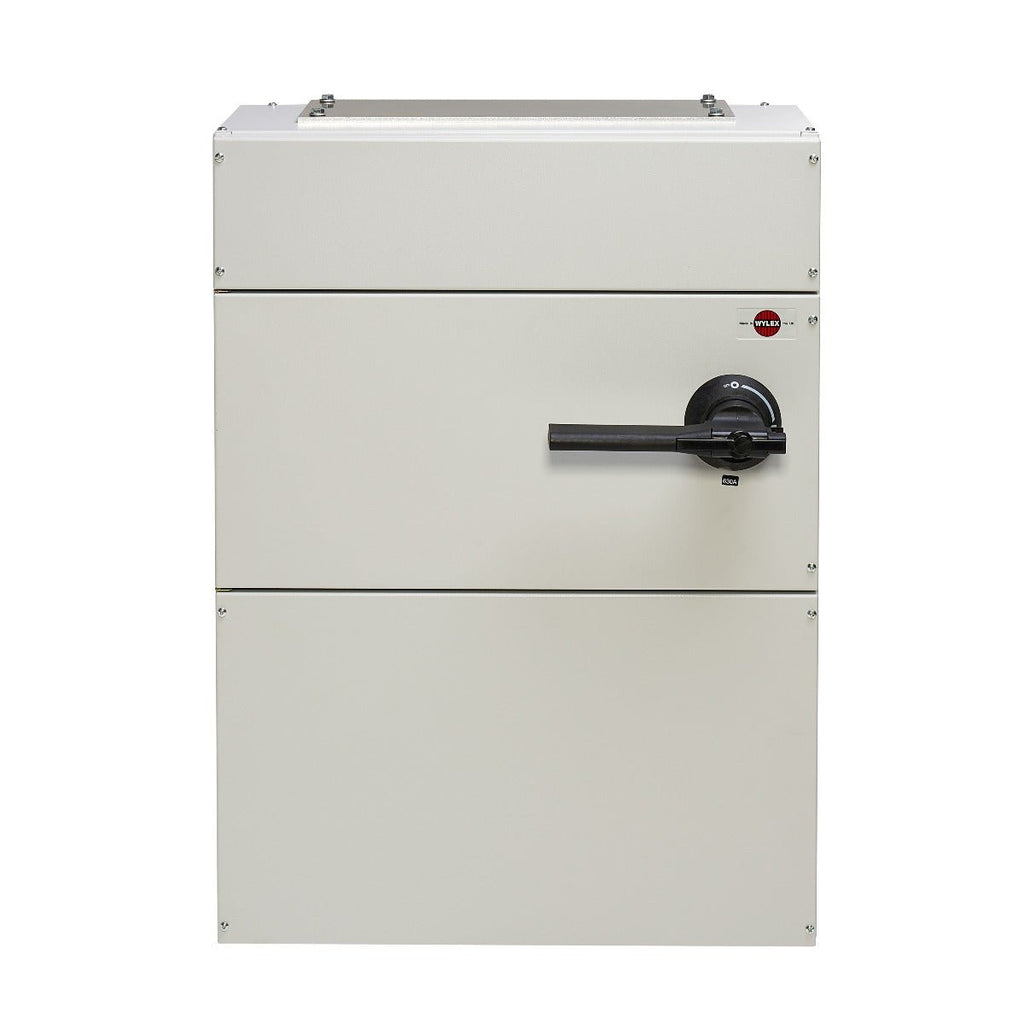

• 630A 3P+N Fuse combination unit
• Supplied without fuses. Switch only.
• Painted RAL 7035 steel enclosure.
• Front door reversible, opening to 180 °
• Operating handle can be padlocked.
• Accommodates cable spreading room up to 630mm ² 4 core.
• Spreading room is allowed for at one end only. To fit a 4 core cable at both ends an additional cable spreader (NHCSB5) is required.
• Voltage rating 415V ac
• Frequency rating 50/60 Hz
• Fuse type BS88
• Dimensions (HxWxD): 900mm x 640mm x 293mm

 Technical details

• Mechanical Endurance	10,000
  Fused s/c Current kA RMS	80
  Ratings	A kW
  415V le/pe	800 450
  Isolator links	NHCIL5
