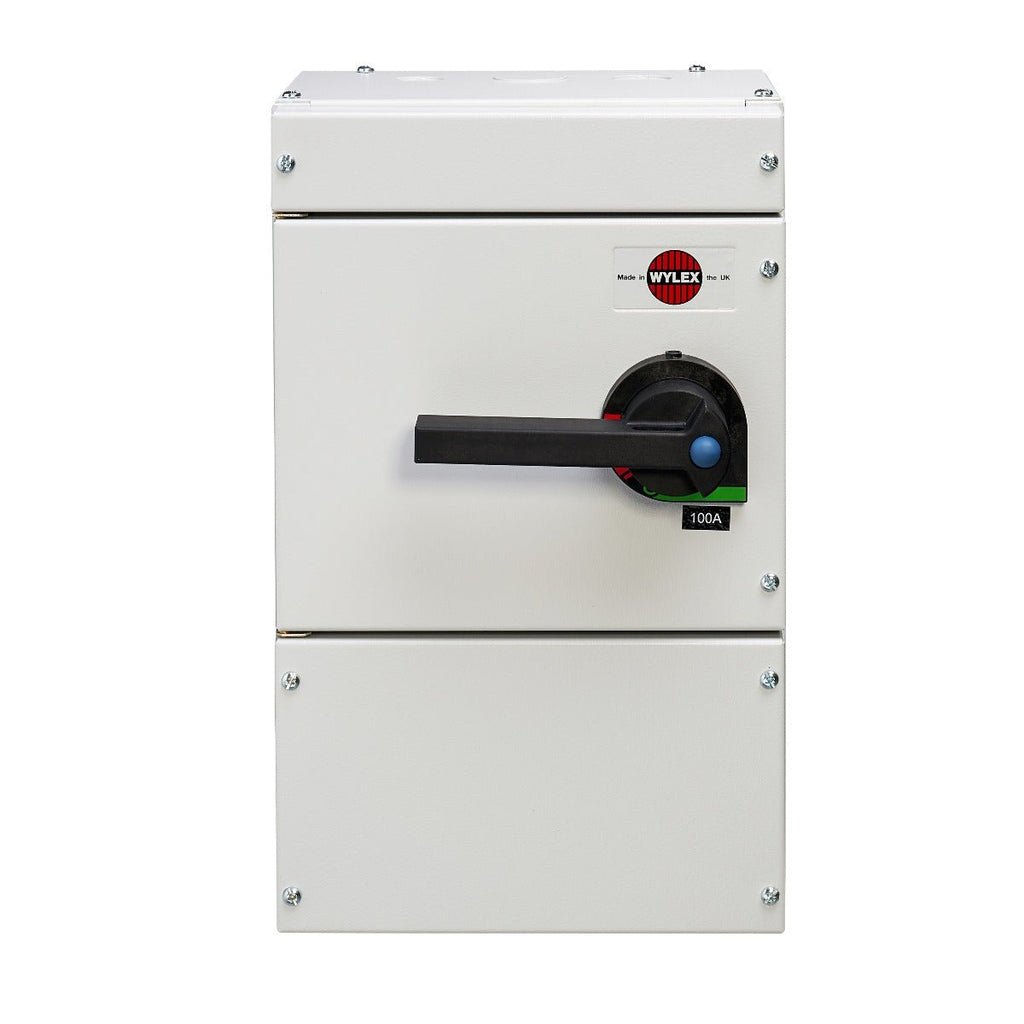

Wylex NHTPSF100 100A 3-Pole + Neutral Fuse Combination Unit c-w Fuses
- 100A 3P+N fuse combination unit
- Supplied with 100A fuses.
- Painted RAL 7035 steel enclosure.
- Front door reversible, opening to 180 °
- Operating handle can be padlocked.
- Accommodates cable spreading room up to 70mm ² 4 core.
- Spreading room is allowed for at one end only. To fit a 4 core cable at both ends an additional cable spreader (NHCSB2) is required.
- Voltage rating 415V ac
- Frequency rating 50/60 Hz
- Fuse type BS88
- Dimensions (HxWxD): 425mm x 263mm x 188mm
-
Technical details
Mechanical Endurance 10,000 Fused s/c Current kA RMS 80 Ratings A kW 415V le/pe 100 55 Isolator links NHCIL3
Specification
Amps ii |
100 |
Commercial unit type |
NH Fuse |
Depth |
188mm |
Fuse included |
Yes |
Gtin |
5013601025537 |
Height |
425mm |
Product type |
Fuse Combination Units |
Regulatory |
BSEN947-3 |
Width |
263mm |
