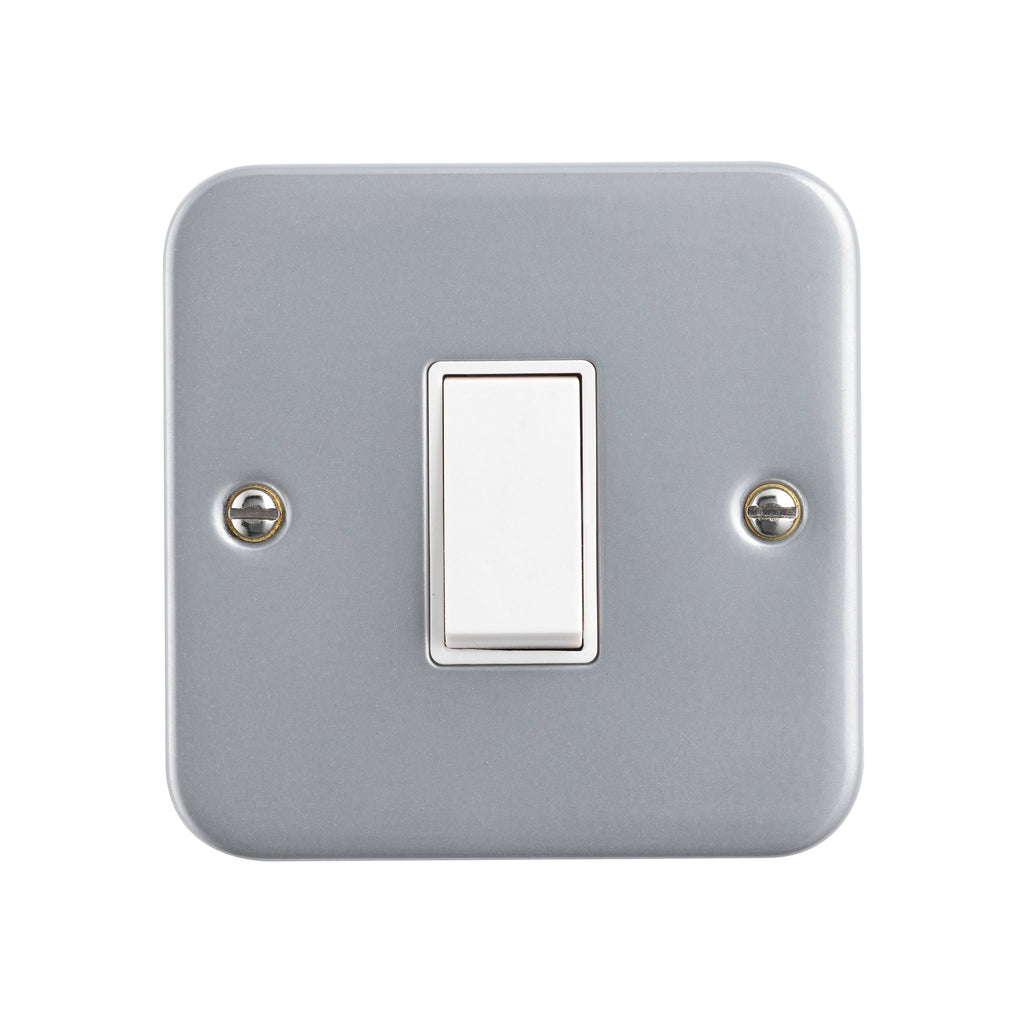

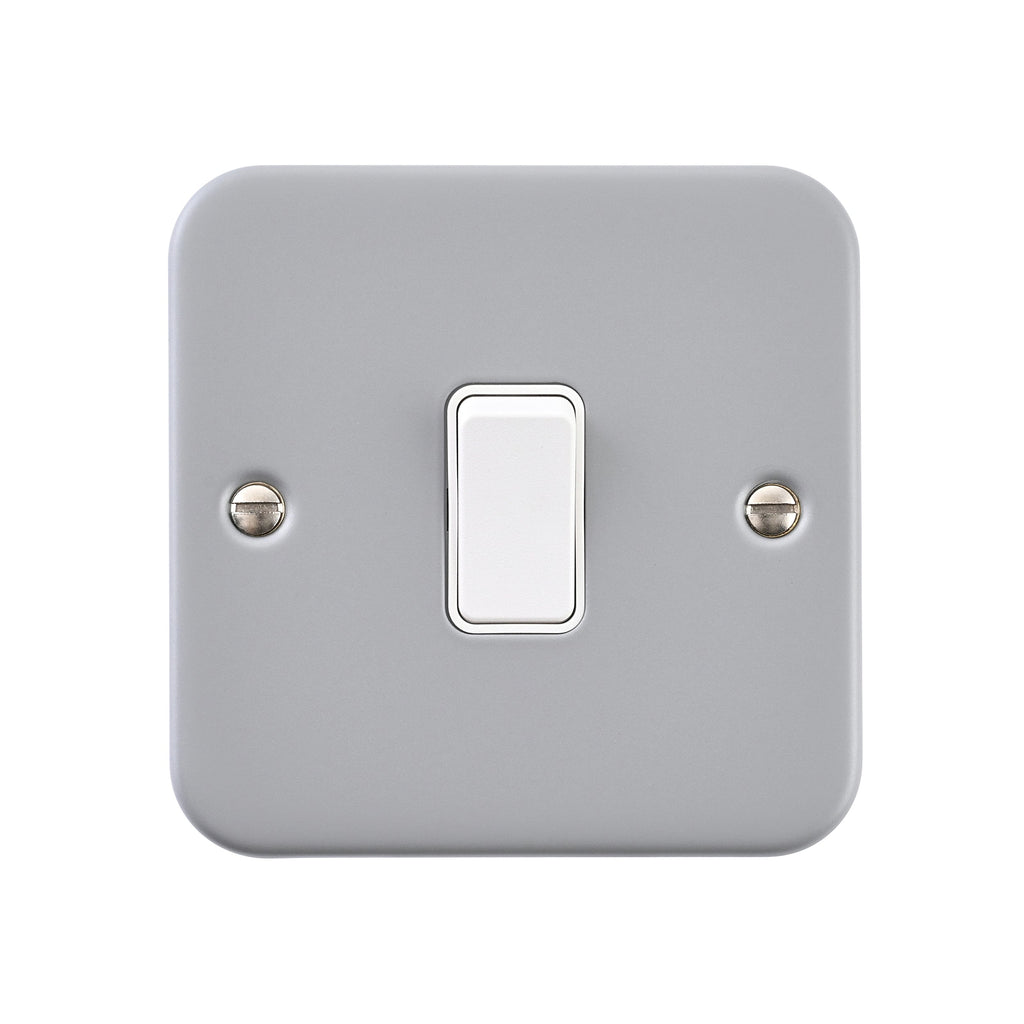

Saxby MC109 10AX 1G Intermediate Switch
- MC 10AX 1G INT SW
- Metal Clad 10AX 1G Intermediate Switch
- Our 10AX rated switch boasts captive screws which provide for quick, easy and hassle free installation Supplied with fixing screws The intermediate switch allows for more than 2 switches in the circuit Etched terminal markings for quick identification Multiple knockout entry points on surface box for 20mm conduit giving you complete versatility when installing Finished in a high quality powder coating to help protect against scratches We recommend using a standard metal surface box with a depth of 40mm - MC901 Certified to IEC 60669-1
- Finish : Silver effect paint
- Product Category : Metal Clad
- Prod Dimensions : 42.5mm depth x 86mm height x 86mm width
- Product Material : METAL
- IP Rating : IP20
- Class : 1
- Minimum Mounting Box Depth : N/A
- Switch Type : INTERMEDIATE
- Anti Fingerprint Lacquer : N/A
- Captive Terminal Screws : NO
- Fixing Screws Supplied : YES
- Screw Cap Covers : NO
- Max Load : 10AX
- Neon Indicator : NO
