Product Description

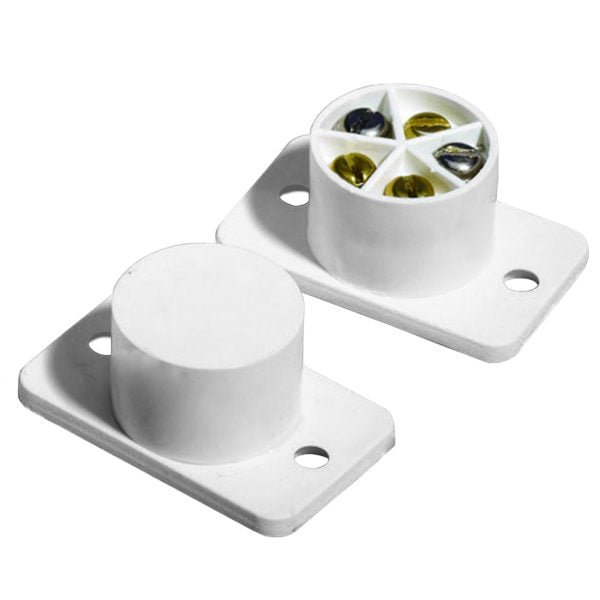

A basic 5 screw flush contact. Two nickel screws to govern the reed switch and 3 spare screws for any custom requirements.

Comes complete with fitting screws.

This contact is Normally Open (N/O) – The circuit through the contact is complete until the magnet is moved close by. With the magnet in close proximity, the circuit through the contact is broken making them perfect for heating / aircon / access control systems.

Product Details

• Environmental Class: II – Indoor uncontrolled

• Terminals: 5 screw

• Tamper: None

• Colour: White

• Operating Gap: ~14mm

• Barrel Dimensions: 20mm diameter, 13mm deep

• Plate Dimensions: 22mm x 36mm x 2.2mm

• Materials: High Impact Polystyrene

• Magnet: Ferrite or Alnico V

• Contact Material: Rhodium

• Voltage Range: 1 – 100v DC, 125v AC Max

• Switching Current: 500mA Max DC, 500mA Max AC
