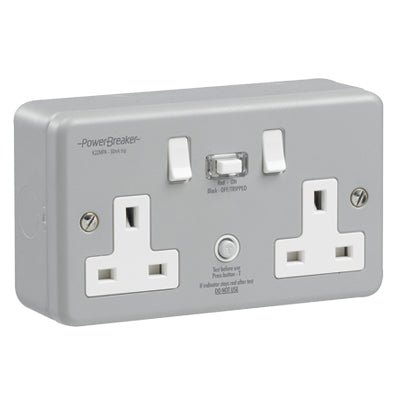

Product Description

• Mechanically latched (does not need resetting after a power loss)

• High intensity LED power on indicator

• Twin sockets fitted with twin earth terminals

• Conforms to BS 7288:1990 Amd 1, BS 1363-2:1995 Amd 1-3
  EMC Emissions - EN 55014-1:2006 & EN 55014-1:2000 inc A1:2001 & A2:2002
  EMC Immunity - EN 61543:1995 inc A11:2003, A12:2005 & A2:2006

• Product Dimensions: 86 x 146.8 x 11mm

Technical Data

• Rated voltage: 230V AC 50Hz

• Max operating current: 13A (13A inductive)

• Rated trip current: 30mA

• Typical trip speed: Less than 20mS (typical)

• RCD contact break: Double pole

• Latching: Mechanical, no need to reset after power loss

• Responsive to: Pulsating DC earth faults
