Product Details

• Colour: Red

• Rated current (A): 63

• IP degree: IP67

• No. of poles: 3P+E

• Reference: 6H

• Mechanical resistance: IK09

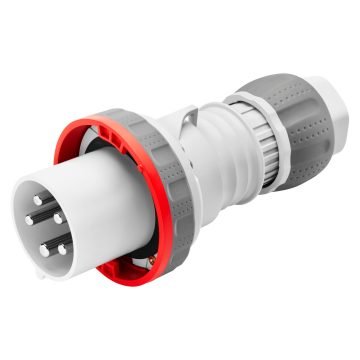

• Type: Straight plug

• Rated voltage: 380 - 415 V

• Frequency: 50/60 Hz

• Terminal tightening capacity: 6-16mm² flexible cables - 6-25mm² rigid cables

• Cable clamp tightening capacity: 17.9-37 mm

• Operating temperature: -25 +55 °C

• Type of wiring: Mantle terminal

• Type of material: Halogen-free in compliance with EN 60754-2

• Electrocod: 2231

• Glow wire test: 850 °C (active parts) - 650 °C (passive parts)

• Total number of operations: > 2000

• Breaking capacity at 1.1 Un: 79 A

• Insulation resistance: > 10 MΩ
