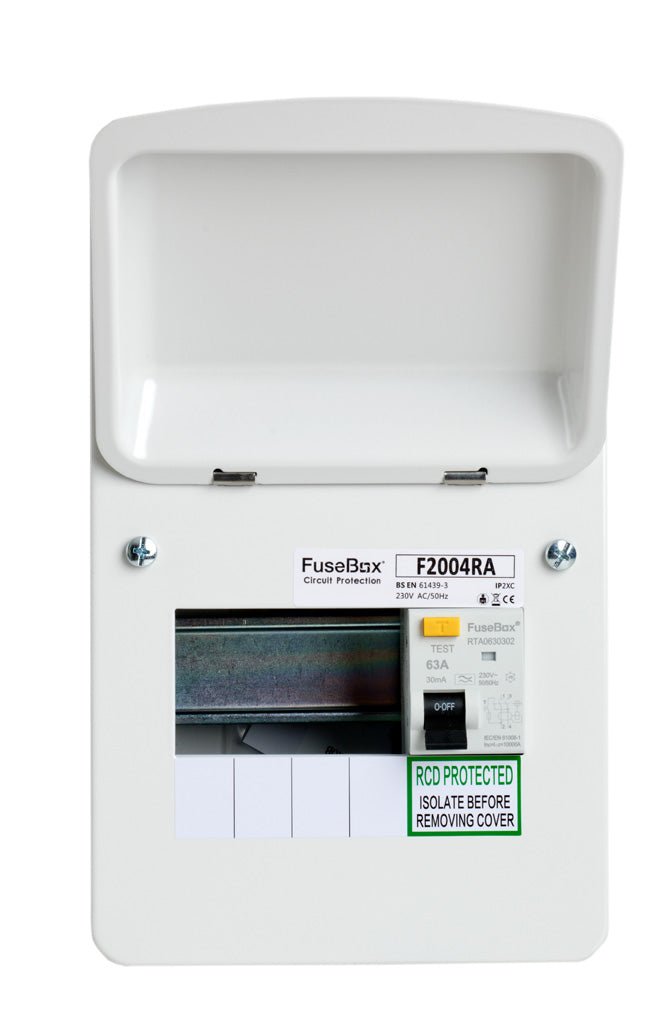

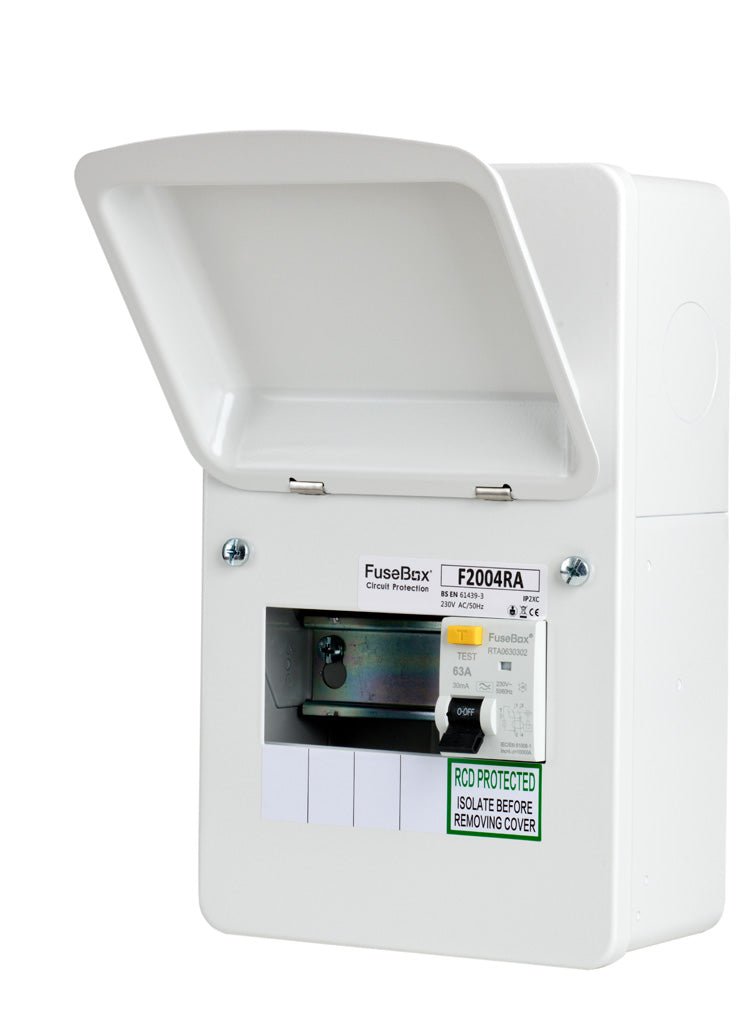

Fusebox F2004RA 4 Way, 63A RCD Consumer Unit (30mA,Type A)
Product Details
| PART NUMBER WITH T2 SPD | F2004RA |
| WEIGHT (1PC) Kg | 2.3 |
| DIMENSIONS (HxWxD)mm | 259x162x113 |
| RCD RATING (TYPE A) | 63A 30mA |
| TAIL CLAMP COMPATIBLE (ACCF) Y Y | Y |
| STANDARD | EN 61439-3 |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| PROTECTION DEGREE (IP) | 2XC |
| MAXIMUM TERMINAL BAR CAPACITY | 16mm ² |
| TERMINAL BAR TIGHTENING TORQUE (Nm) | 2 |
| MOUNTING | 35mm DIN RAIL |
| MATERIAL | 1mm ELECTRO GALVANISED STEEL (ZINC) |
| FINISH | RAL 9001 POWDER COATED SMOOTH FINISH |
| KNOCKOUTS | SELECTION 20mm - 40mm |
| ACCESSORY PACK | CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP |
Specification
Gtin |
5060523524198 |
Product type |
Mini-Trunking |
